RunCam Swift Mini - the mighty warrior
People at Runcam did a great job, they took well known good Swift (later swift 2) and made it smaller – The Runcam Swift Mini.
Compared to the Swift it’s considerably smaller, yet it managed to maintain the same image quality.
It’s designed for the 3″ mini quad (130mm - 150mm) market. Or small Wings or planes or even cars.
But you can use it with any other tight frames that requires smaller FPV cameras. Quality of new lenses is just superb, and more important it has very good WDR.
You can get it from BangGood, or GearBest or directly from Runcam.Com
Spec
- Dimension 22.3 x 22.0 x 27.0mm (WxHxL).
- Weights 12g
- Voltage Input: 5 to 36V
- 600 TVL
- WDR

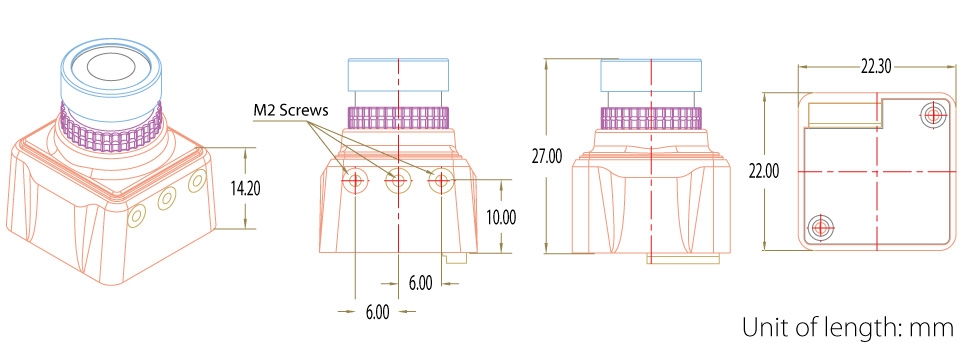

Dimension of the Swift Mini is 22.3 x 22.0 x 27.0mm (WxHxL). It weights 12.6g only. The mounting holes are for M2, distance between holes is 6mm.
Contents in the box
-
1x Camera
-
1x Aluminum bracket
-
1x ABS bracket
-
1x Set of screws
-
1x 5D-OSD menu cable
-
1x 3pin FPV silicone cable
-
1x 2pin extension cord for menu cable
-
1x Manual
| Model | RunCam Swift Mini |
| Image Sensor | 1/3" SONY Super HAD II CCD |
| Horizontal Resolution | 600TVL |
| Lens | 2.5mm / 2.3mm / 2.1mm |
| Signal System | PAL / NTSC |
| S/N Ration | >60dB(AGC OFF) |
| Electronic Shutter Speed | PAL:1/50 ~ 100,000; NTSC:1/60 ~ 100,000 |
| AutoGain Control(AGC) | YES |
| Back light compensation(BLC) | YES |
| Min.illumination | 0.01Lux/1.2F |
| WDR | D-WDR |
| DNR | 2DNR |
| Day/Night | Color / Auto / B&W |
| Power | DC 5 to 36V |
| Net weight | 12g |
| Dimensions | 22.3mm * 22mm * 27mm |
Download Manual Here
More pictures
You can get it from BangGood, or GearBest or directly from Runcam.Com
