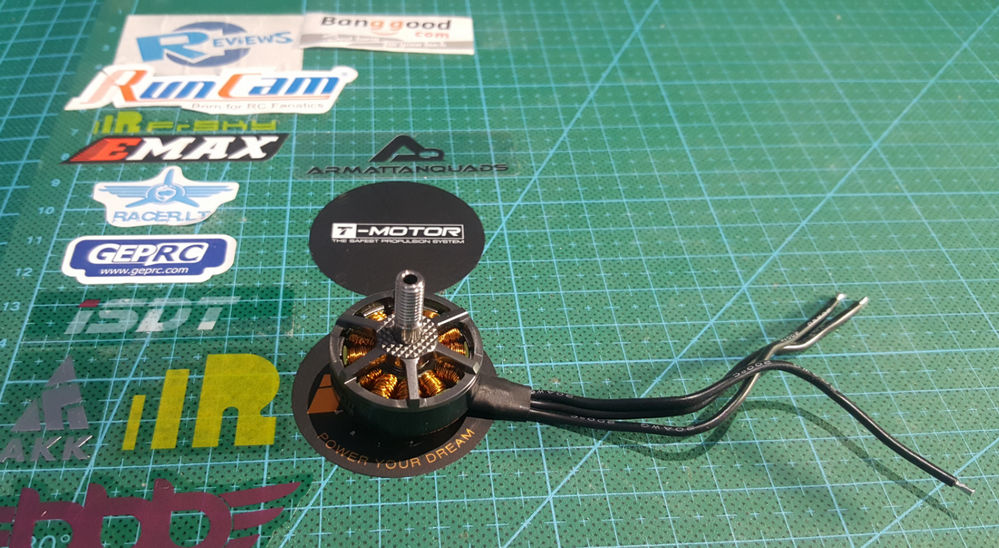

F40 PRO II by T-Motor - Adamantium Grey
The Tiger Motor F40 PRO II Motor has been designed and built specifically for FPV Racing.
Coming in at only 29.5g, including wires, the F40 PRO II is very light for the power it can dish out. Another amazing feature are the high temperature silver core windings. These windings are able to withstand much higher temperatures than conventional windings. Additionally, the top of the stator has an anti-slip design that keeps your props stable during high intensity flights.
The F40 PRO II comes in three different colors to fit your build. Each color has three different KV options so you can opt for efficiency or pure speed.
SPECIFICATIONS
- KV: 1600
- Configuration: 12N14P
- Shaft Diameter: 4mm
- AWG: 18#
- Internal Resistance: 42mΩ
- Motor Dimensions (Dia.*Len): Φ27.9×32mm
- Weight with wires(g): 29.5g
- Weight without wires(g): 27g
- ldle current@10v(A): 1.6A
- No.of Cells(Lipo): 3-4S
- Cable length: 100mm
INCLUDED
- 1x F40PRO II 1600Kv Motor
- 1x Prop Locknut
- 4x Socket Head Screws
Get yours here: https://api.racer.lt/6jao
