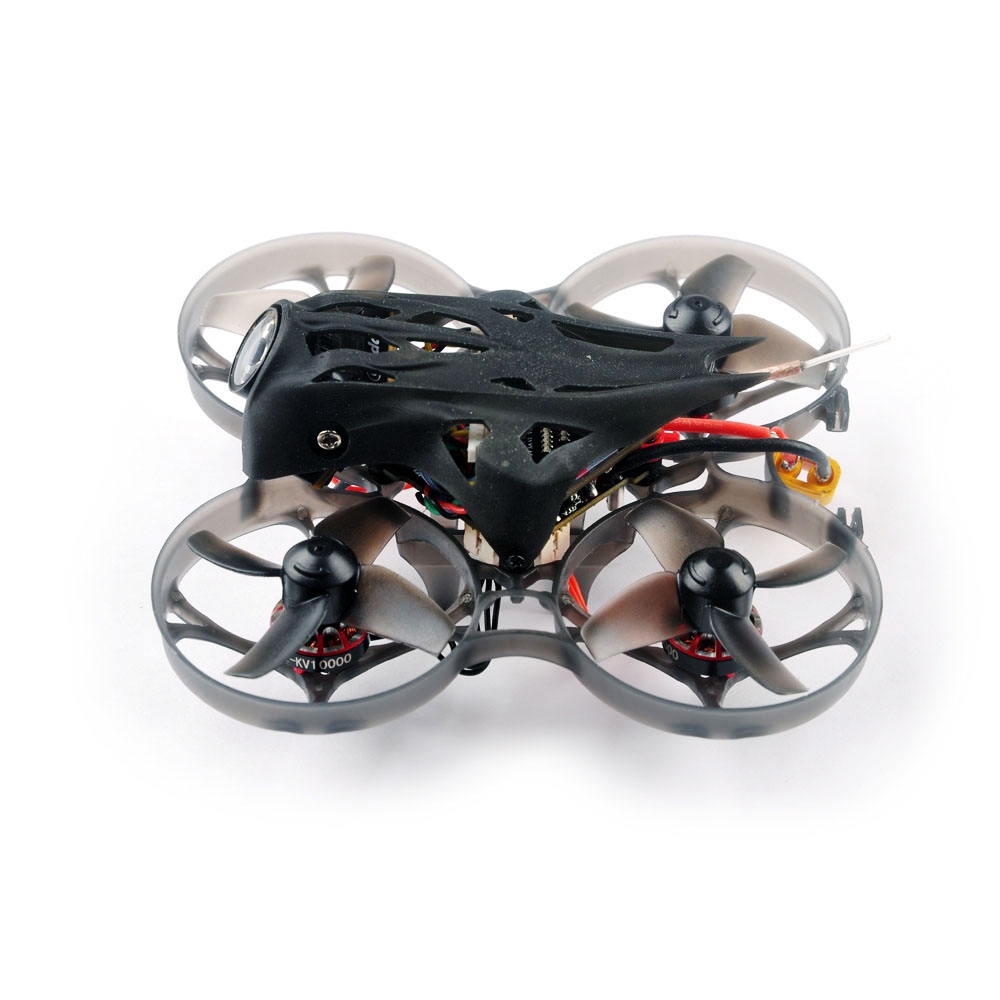

Happymodel Mobula7 HD 2-3S 75mm Crazybee F4 Pro Whoop - the 75mm HD cinemaDrone
Happymodel Mobula7 HD 2-3S 75mm with CADDX Turtle V2 HD Camera
Now available here: BangGood
Specification:
Brand Name: Happymodel
Model: Mobula7 HD
Item Name: 75mm Wheelbase 2-3S Brushless Whoop FPV Racing Drone
Wheelbase: 75mm
Receiver ( Optional):
- Compatible Frsky NON-EU Receiver
- Compatible Flysky Receiver
- Compatible DSM2/DSMX Receiver
- Without Receiver
Size: 98mm*98mm*45mm
Weight: 48g (without battery)
72g ( with battery )
| Crazybee F4 PRO V2.0 Flight Controller | Item Name: Crazybee F4 Pro V2 FC MCU: STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: MPU-6000(SPI connection) Board size: 28.5 * 28.5MM Power supply: 1-3S battery input (DC 3.5-13V) Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready Built-in Receiver ( Diffirent version having diffirent receiver, without receiver version doesn't have rx) Built-in Betaflight OSD(SPI Control) Built-in Current meter Max 28A Current meter scale set to 1175 Built-in 5V 1A Buck / Boost with LC filter Built-in voltage detection Firmware (Frsky version) CRAZYBEE F4FR PRO V2.0 Firmware target: CrazybeeF4FR (Flysky version) CRAZYBEE F4FS PRO V2.0 Firmware target: CrazybeeF4FS (DSM2/DSMX version) CRAZYBEE F4DX PRO V2.0 Firmware target: CrazybeeF4DX (No RX version) CRAZYBEE F4 PRO V2.0 Firmware target: CrazybeeF4DX |
| Onboard 5A 4 In 1 ESC |
Power supply: 1-3S LiPo/LiPo HV (3.5v/13v) Current: 5A continuous peak 6A (5 seconds) Support BLHeliSuite programmable Factory firmware: S_H_50_REV16_7.Hex Default protocol: DSHOT600 |
| Onboard Frsky NON-EU receiver Version |
SPI BUS receiver Frsky D8/D16 switchable Compatible Non EU transmitter both D8 and D16 mode Channels: 8ch or 16ch Failsafe support No ground interference ( Transmitter and receiver 1 m from the ground): 300m |
| Onboard Flysky receiver Version |
SPI BUS receiver Protocol: AFHDS and AFHDS-2A Switchable Channels: 8ch(AFHDS) or 14ch(AFHDS-2A) No ground interference ( Transmitter and receiver 1 m from the ground): 300m Failsafe support |
Onboard DSM2 / DSMX receiver version |
Serial bus receiver Protocol: DSM2/DSMX compatible Channels:6-9 (Depend on your radio) No ground interference ( Transmitter and receiver 1 m from the ground): 300m |
| EX1102 10000KV Motor | Model: EX1102 KV: 10000KV Configu-ration: 9N12P Stator Diamter: 8mm Stator Length: 2mm Shaft Diameter: Φ1.0 Motor Dimension (Dia.*Len) : Φ10.5*14.5mm Weight: 2.7g |
| Propeller | 40mm 4-blade Propeller ( 4 CW + 4 CCW) |
| 5.8G 40CH 25-200mW VTX |
Output power: 25~200mw switchable Frequency: 40CH Input voltage: 3.3V 5.5V Current consumption: 300mA(type) Antenna: RG178 antenna Frequency: 5.8GHz 5bands 40 channels With Raceband Smartaudio ready Weight: 3g |
| CADDX Turtle V2 Camera |
Image sensor: 1/2.7" CMOS sensor Horizontal: 800TVL TV system: NTSC/PAL changeable Video Resolution: 1080P@60fps / 1080P@30fps / 720@60fps Power Input: DC 4.5-20V FPV FOV: 155° Recording FOV: 170° Mini Illumination: 0.01lux Image Resolution: 2 Megapixels Lens: 1.8mm Turbo Eye Lens Working Current: 380mA@5V/160mA@12V (low consumption) OSD Menu: Yes (Support Voltage Display) Video Files: MP4 Audio: Support Electronic Shutter : PAL : 1/50-100,000 NTSC : 1/60-100,100 S/N Ratio: >60dB (AGC OFF) Video Output: CVBS Max Micro SD Card Supported: 8-64GB(need Class 10 or above, recommend Class 10/UHS-I/UHS-II) Color: Red |
| Lipo Battery |
Capacity:300mAh Voltage:11.4v Continuous Discharge Rate: 30C Instantaneous discharge rate: 60C Size: 65mmx18mmx11mm Weight: 23g Connector: XT30 |
Features:
- New Crazybee F4 PRO V2.0 AIO Flight controller 1-3s Lipo Compatible
- 2S for indoor Cine whoop mode
- 3S for outdoor Freestyle whoop mode
- Betaflight support , multi flight mode: ACRO/AIR/ANGLE
- The lightest 1102 brushless motor only 2.7g with double ball bearings
- Powerful and smoothly
- Betaflight OSD support ,easy to get RSSI, Voltage ,current from your goggles(DSMX version no RSSI output)
- Caddx turtle v2 + 1080p 60fps DVR ready
- Camera Angle adjustable
- VTX power switchable 25mw~200mw
- Smartaudio ready , change VTX bands, powers, channels via OSD
- Frsky Non-EU version support NON-EU Frsky transmitter D8/D16 compatible
- Flysky version support both AFHDS and AFHDS-2A protocol transmitter
- DSM2/DSMX version support DSM2 and DSMX compatible Spektrum transmitter
- No RX version support external serial-bus receiver like xm+, crossfire, S-FHSS etc..
- Full telemetry function ready (Frsky Non-EU and Flysky version support)
- Special Breath light ready
- Real Bind and Fly version
- Compatible both for 2s-3s Lipo/LIHV
Package Included:
1x Mobula7 HD 75mm FPV Drone
4x 40mm 3-Blade Propellers ( 4 CW & 4 CCW)
1x 3S 11.4v 300mah 30C/60C battery
1x Propeller Disassemble Tool
1x Screwdriver
