5 best Drone racer 4 in 1 ESC for 6S of 2019
This is most advanced list of most expensive and one reasonable good price 4 in 1 ESC for 6S of 2019
- T-motor F55A PROII 55A 3-6S 4 IN 1 Blheli_32 32bit Brushless ESC (~70$)
- Aikon AK32 55A Blheli_32 2-6S Brushless ESC (~70$)
- Racerstar Metal 60A Blheli_32 3-8S 4 IN 1 Brushless ESC (~40$ with coupon BGRM60A normal price 70$)
- TRANSTEC 50A 3-6S Blheli_32 4 In 1 Brushless ESC 5V/3A BEC(~60$)
- Airbot Furling 32 4in1 BLHELI_32 3-6S 4x45A Brushless ESC (~50$)
- The upcoming 20x20mm Hobbywing XRotor Micro 40A BLheli_32 4in1
T-Motor F55A
T-motor F55A PROII 55A 3-6S 4 IN 1 Blheli_32 32bit w/ LED DSHOT1200 Brushless ESC 30.5X30.5MM for RC Drone FPV Racing
Specification:
Brand name: T-motor
Item name: F55A PROII 3-6S 4 IN 1 Blheli_32 Brushless ESC
Continous current: 4*55A
Burst current: 4*75A
Size: 45x41x7.3mm
Weight: 17.3g (including heatsink)
BEC Output: [email protected]
Package Included:
1 x F55A PROII Brushless ESC
T-motor F55A PROII 55A 3-6S 4 IN 1 Blheli_32 32bit Brushless ESC (~70$)
Aikon AK32 55A
Aikon AK32 55A Blheli_32 2-6S Brushless ESC w/ 5V/3A BEC for RC Drone FPV Racing
Specification:
Brand name: Aikon
Item name: AK32 55A Brushless ESC
Lipo cell: 2-6S
Constant Current: 55A
Burst Current: 65A
BEC: 5V/3A
Size: 36x36mm
Mount holes: 30.5x30.5mm
Firmware: Blheli_32
MCU: STM32 F0
Bootloader: YES
Weight( with/wire): 15g (with wire)
Signal wire length: 100mm
Battery wire length: 150mm
Package Included:
1 x AK32 55A Brushless ESC
Aikon AK32 55A Blheli_32 2-6S Brushless ESC (~70$)

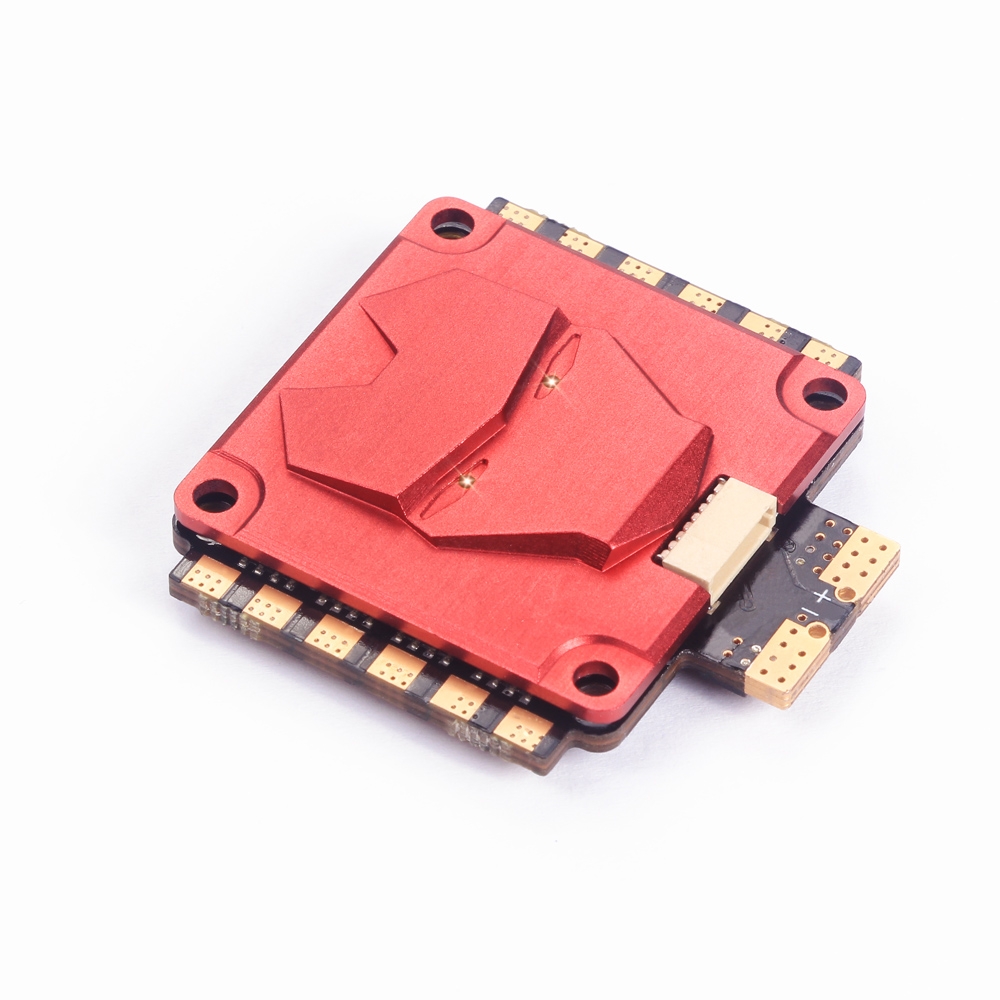

Racerstar Metal 60A
Racerstar Metal 60A Blheli_32 3-8S 4 IN 1 Brushless ESC w/ Current sensor DShot1200 CNC IP65 Waterproof 24g for RC Drone
Specification:
Brand name: Racerstar
Item name: Metal 60A
Firmwire: Blheli_32
Con.Current:60A
Peak Current(10s):70A
LBEC:NO
SBEC:NO
Lipo:3-8S
Programming :YES
Weight:24g
Size(PCB):43*45mm
Mounting size: 30.5x30.5mm M3
Feature:
With current sensor
Improved MOS tube dead zone temperature lower
Pad gold edge
Package Included:
1 x Metal 60A 3-8S Blheli_32 Brushless ESC
Racerstar Metal 60A Blheli_32 3-8S 4 IN 1 Brushless ESC (~40$ with coupon BGRM60A normal price 70$)
TTTRC T1-50A 50A
TRANSTEC 50A 3-6S Blheli_32 Brushless ESC 5V/3A BEC 30.5x30.5mm for RC Drone FPV Racing
Specification:
Brand name: TRANSTEC
Item name: 50A 4in1 Blheli_32 ESC
Support 3-6S input
ESC Telemetry
Current Sensor
5V 3A BEC
Mounting Hole : 30.5 x 30.5mm
Support DSHOT150/300/600 Proshot1000
Firmware: TRANSTECN_50A
Size: 45x41.5x7.5mm
Weight: 16g
Package Included:
1 x 50A 4in1 ESC
1 x XT60 Power Cable
5 x Anti-vibration Silicon Rubber Spacer
2 x 8P Cable
1 x Capacitor
TRANSTEC 50A 3-6S Blheli_32 4 In 1 Brushless ESC 5V/3A BEC(~60$)
Airbot Furling 32
Airbot Furling 32 4in1 BLHELI_32 3-6S 4x45A Brushless ESC with F3 MCU ADC Current Sensor for RC Drone
Specification:
- 32bit ESC with BLHELI32 firmware
- Supports 3-6S lipo input
- PWM input, TLM supported
- Voltage output (VBAT)
- NO BEC
- Supports oneshot / Multishot / Dshot PWM
- Mounting holes 30.5x30.5mm
- Supports damped light
- F3 MCU, runs double faster than F051
- Extra Cap needed for high current or 6s usage
Features:
-New BLHELI32 ESC with F3 MCU, give more smooth control and
-faster responding speed.
-Supports up to 55A burst and 45A continued
Package included:
1x Airbot Furling 32 4in1 BLHELI_32 ESC
Airbot Furling 32 4in1 BLHELI_32 3-6S 4x45A Brushless ESC (~50$)
