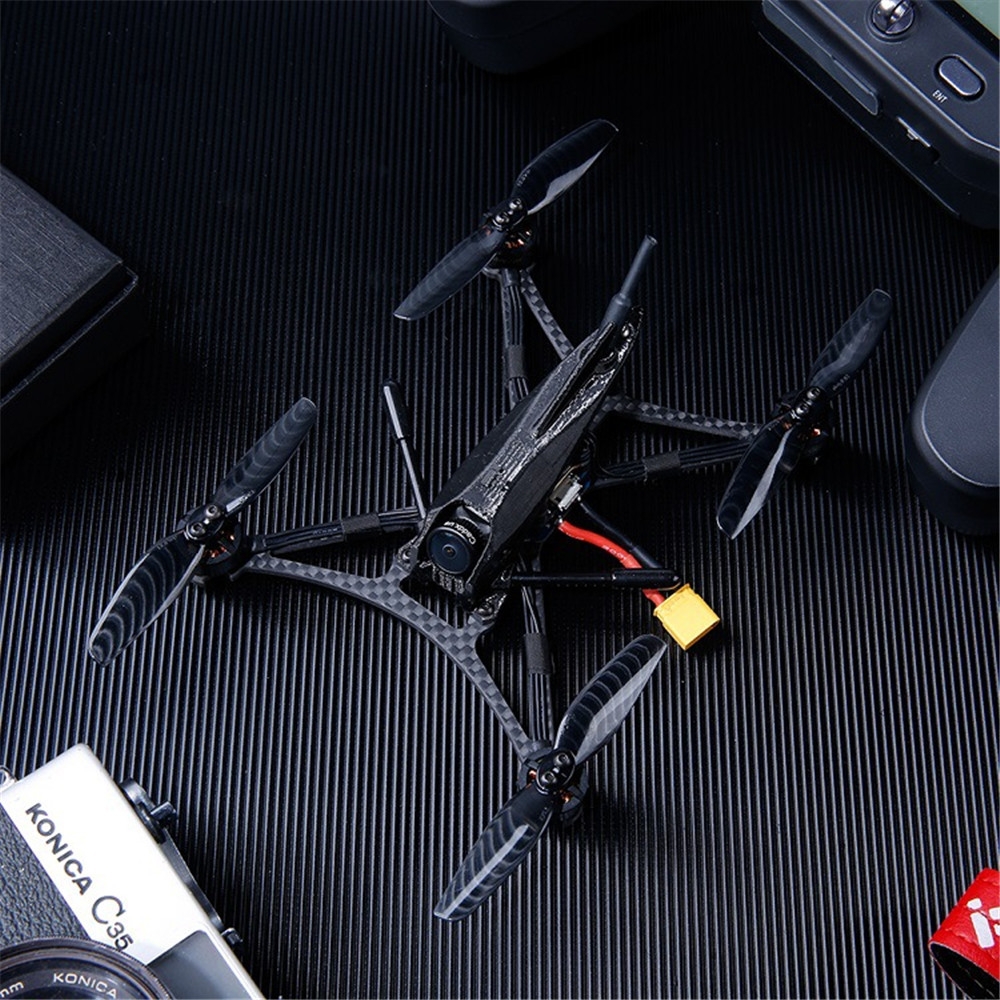

iFlight TurboBee 136RS 4S Version - perfect for micro drone racing!


This TurboBee 136RS is designed and born for micro FPV racing.

This thing absolutely screams and flies like a 5 inch!

Available here: iFlight TurboBee 136RS 4S



Features:

-SucceX Micro F4 Flight controller is 2-4s Lipo Compatible
-The lightest 1104 brushless motor on the market with double ball bearings
-Light, Powerful and smooth configuration
-3mm bottom carbon fiber frame
-2mm top carbon fiber frame
-Compatible 4s Lipo/LIHV
- Frame Wheelbase: 136mm
- Build Weight:  around 65.2g (without battery)

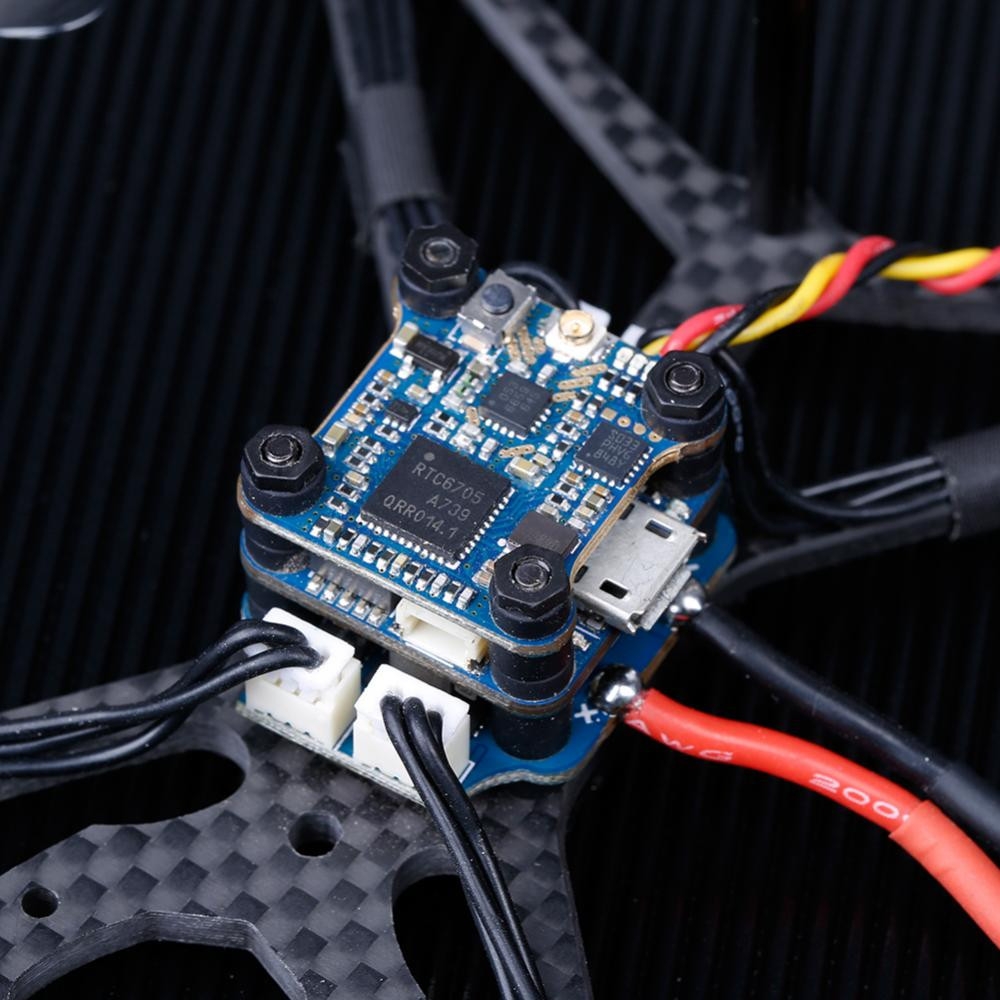

SucceX Micro 16x16 Tower 2-4S

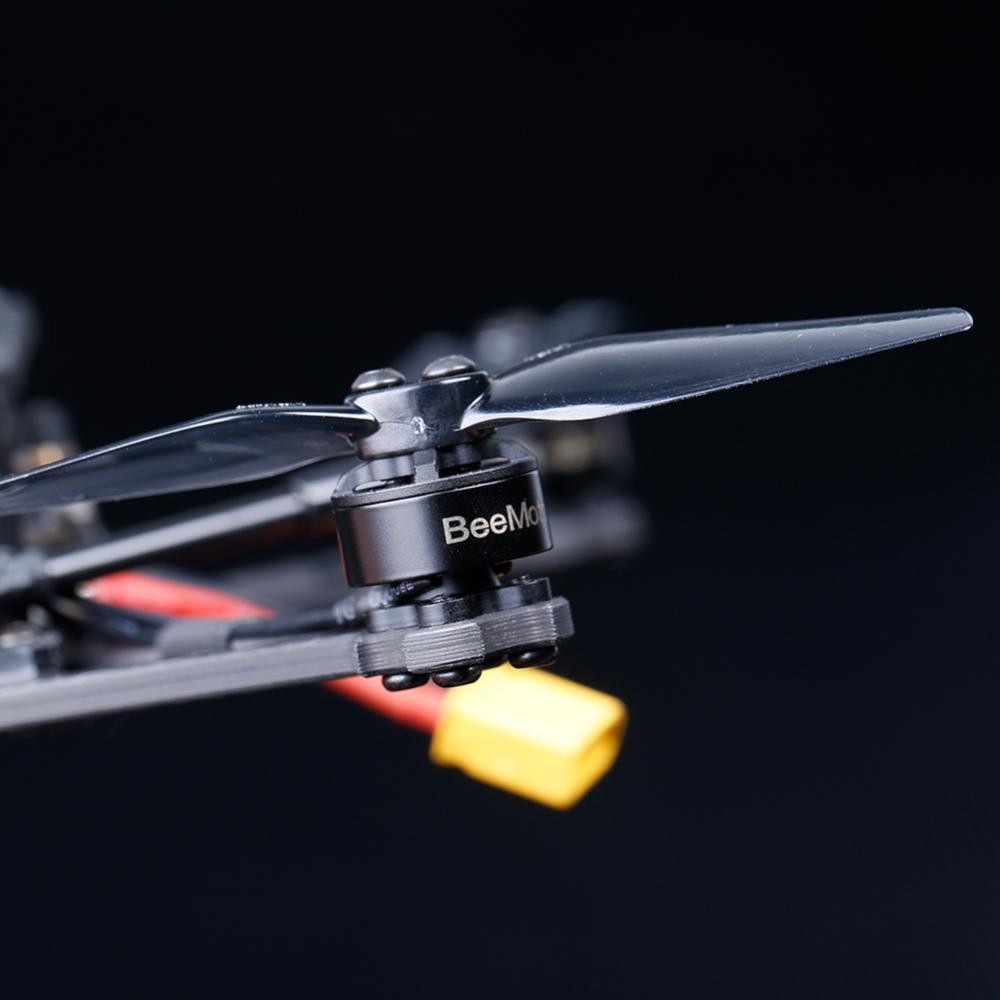

BeeMotor 1104 4200KV motors with plugs
- Caddx.us Turbo Eos2 2.1mm 16:9 NTSC Lens
- HQProp T3*2 propellers


SucceX F4 Flight Controller

-STM32F411
-Input voltage 2-4S LIPO
-Gyro: MPU6000
-2x UART ports
-4x motor outputs
-OSD inbuilt
-Blackbox FLASH
-BEC 5V 3A cont.
-Size: 21mm*21mm
-Mounting holes distance: 16*16mm
-Weight: 2.5g
-BF target : STM32F411


SucceX Micro 12A Brushless ESC(w/plug)

-Firmware: G-H-30 BLS 16.7
-Input voltage : 2-4S LIPO
-Continuous current: 12A
-MCU: BB21F16G
-BEC: None
-ESC protocol: PWM, oneshot125, multishot, dshot150, 300, 600, etc.
-Size: 23mm*21mm
-Mounting hole 16*16mm
-Weight: 2.7g


SucceX Micro VTX

-Power: PIT/25/100/200mW
-Antenna interface: IPEX (UFL)
-Telemetry: IRC Tramp
-Size: 17mm*27mm
-Mounting holes: 16*16mm
Recommended battery: (not included)
4S 450mAh


Package included:

1pc x TurboBee 136RS BNF
2sets x HQ T3*2 propellers transparent grey
2pcs x Battery straps
