4S-5" AiO1306 3100KV (2023)

4S-5" AiO1306 3100KV (2023)

R
Autorius: RotorBuilds
2023-02-08 YQ5 – cadre d'empattement de 5 pouces, 200mm, Support d'hélice de 5 pouces, 3 6S 30 60A, moteur 2004 2306, pour Drone à cure

Apie šį buildą

Original Author: scirocco


5inch with battery -> under 250gramm???

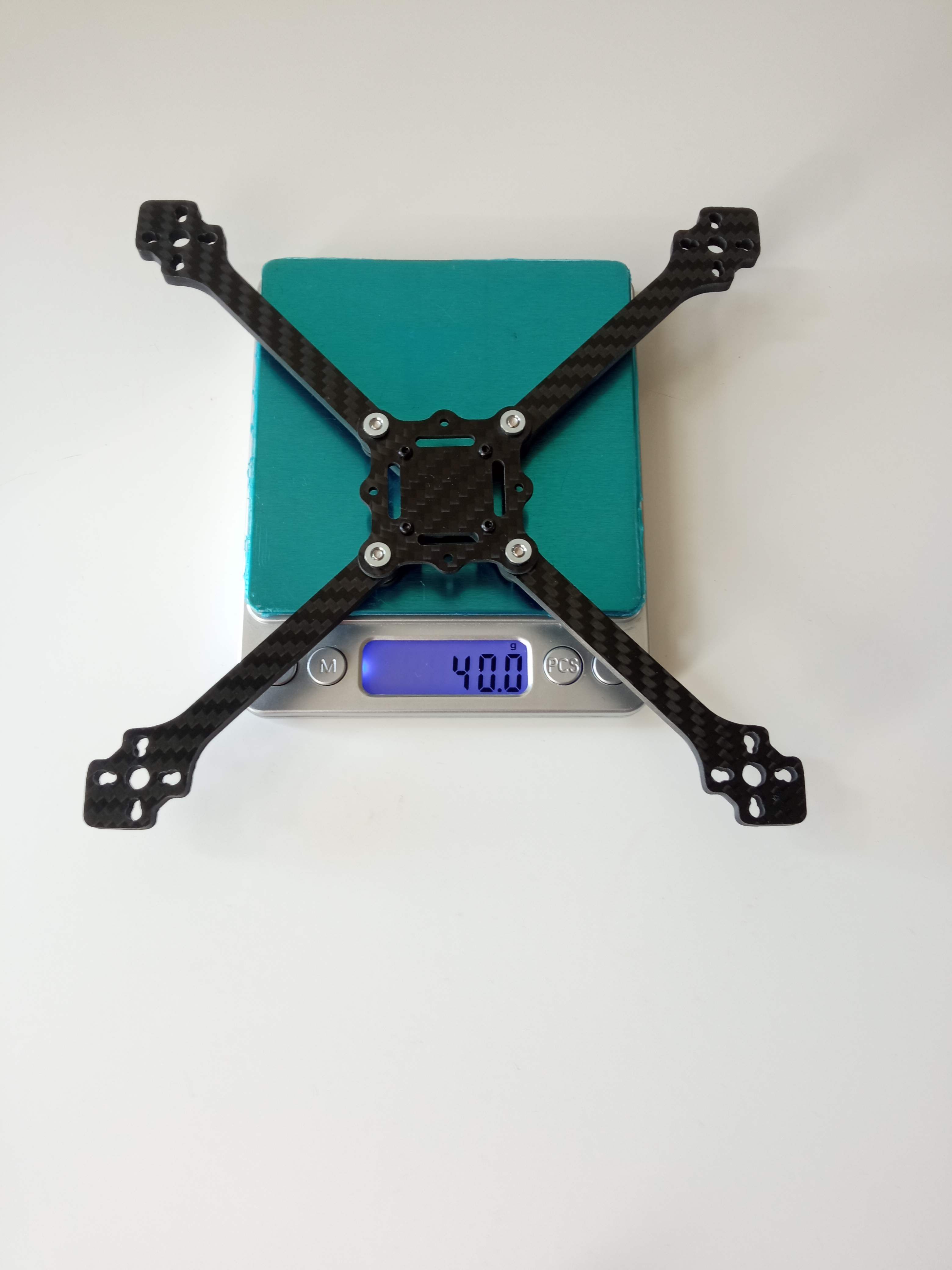

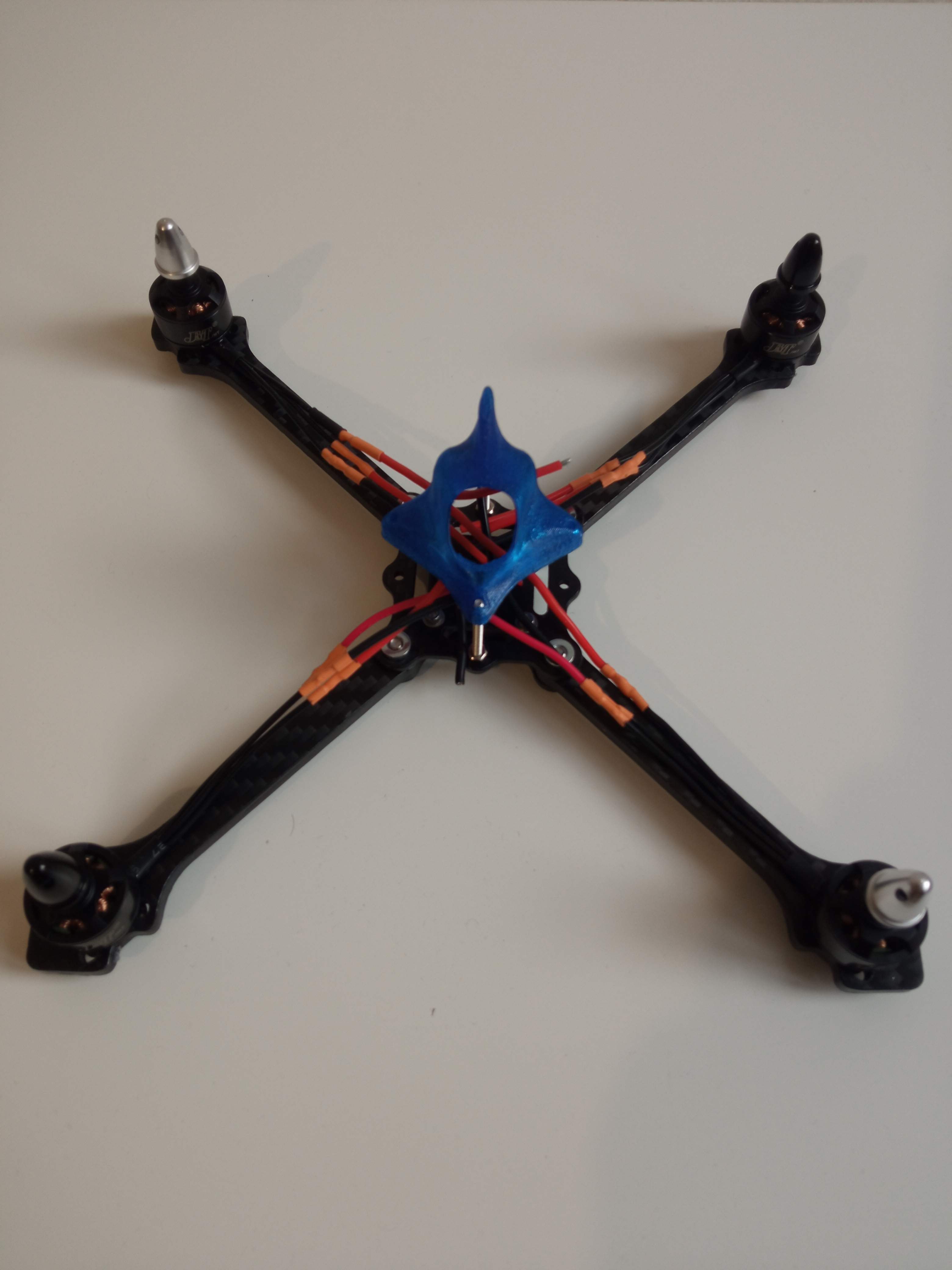

Frame: DIY YQ5 5inch 200mm Wheelbase Frame ​(40g)

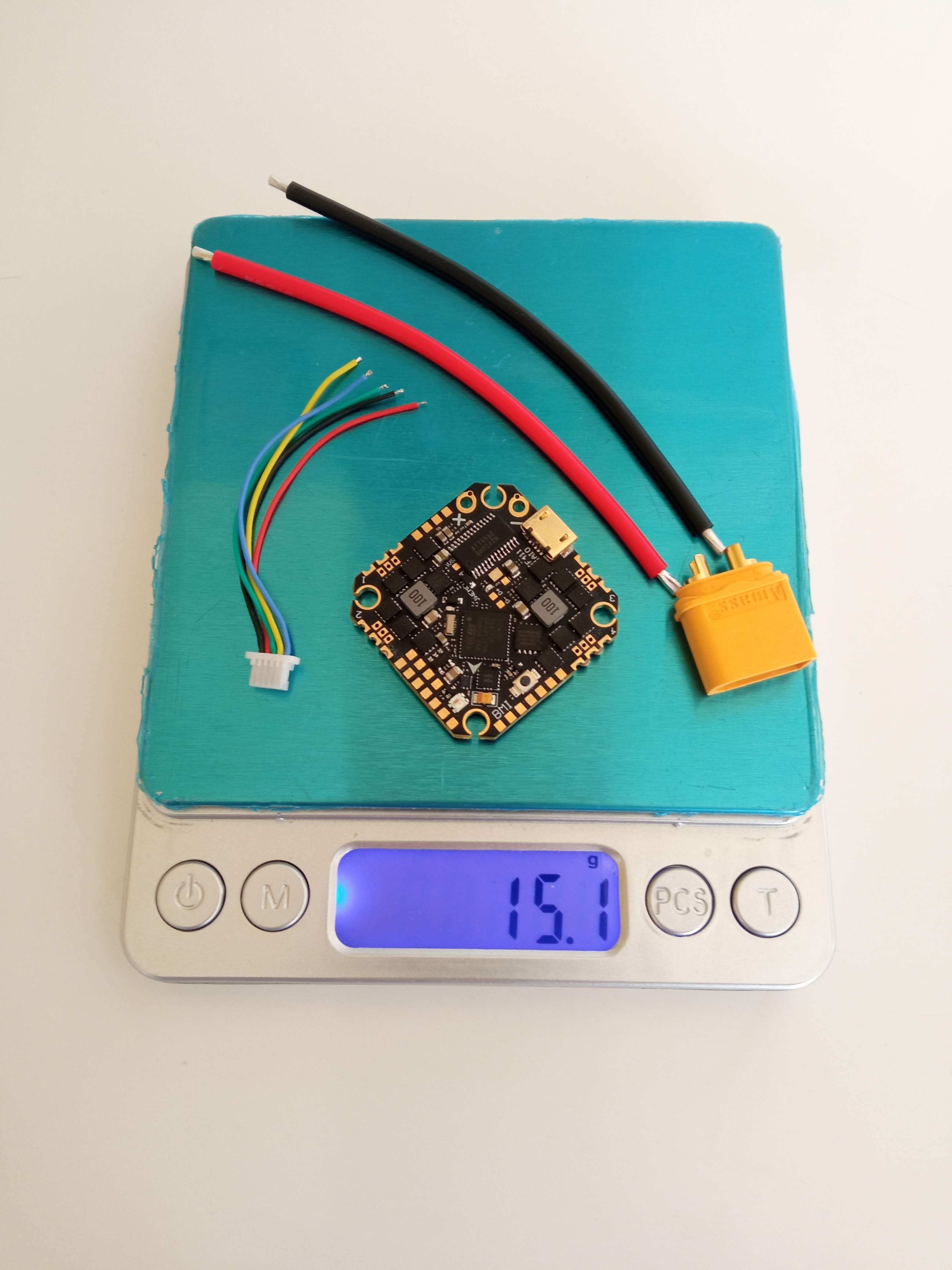

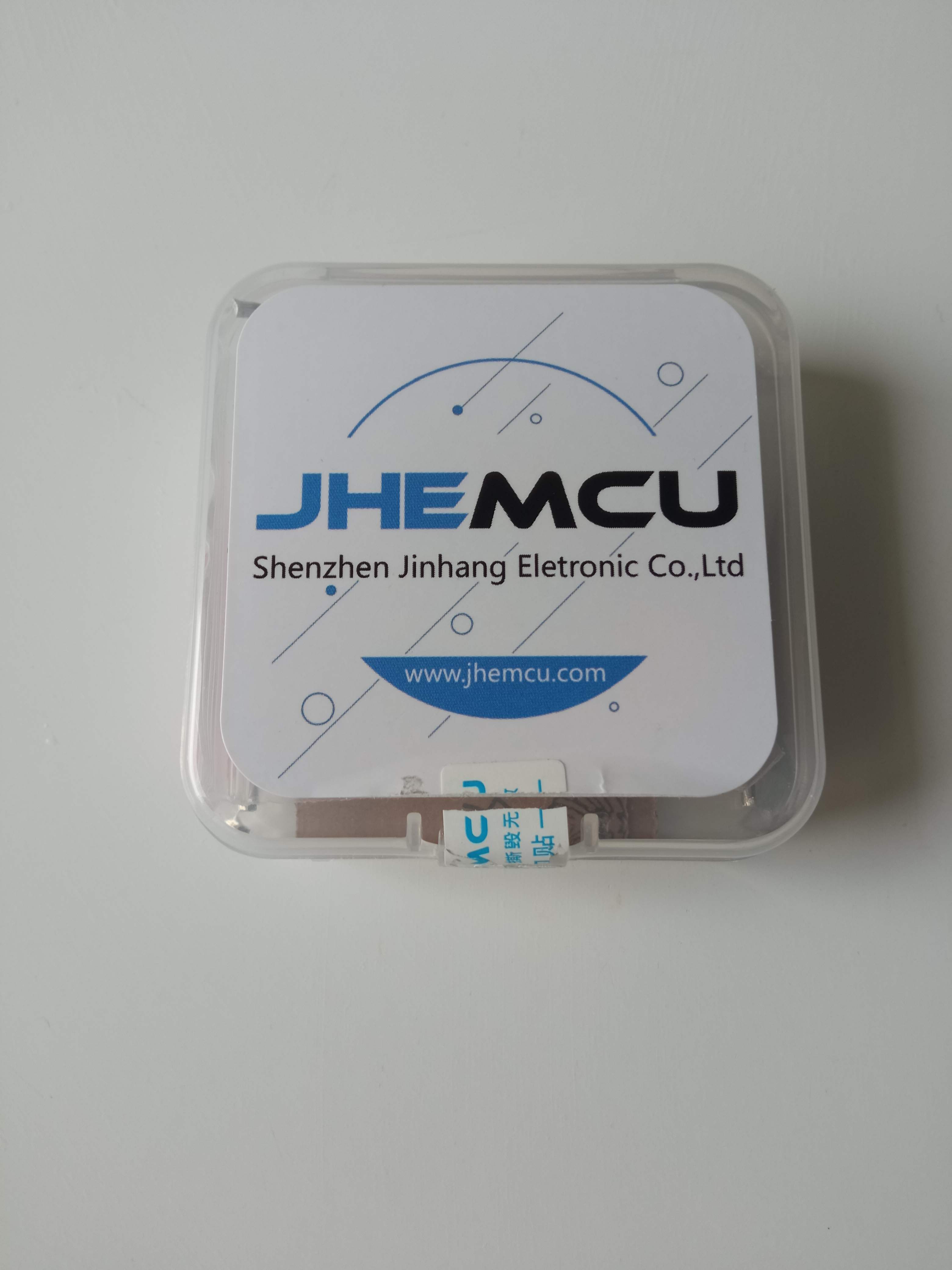

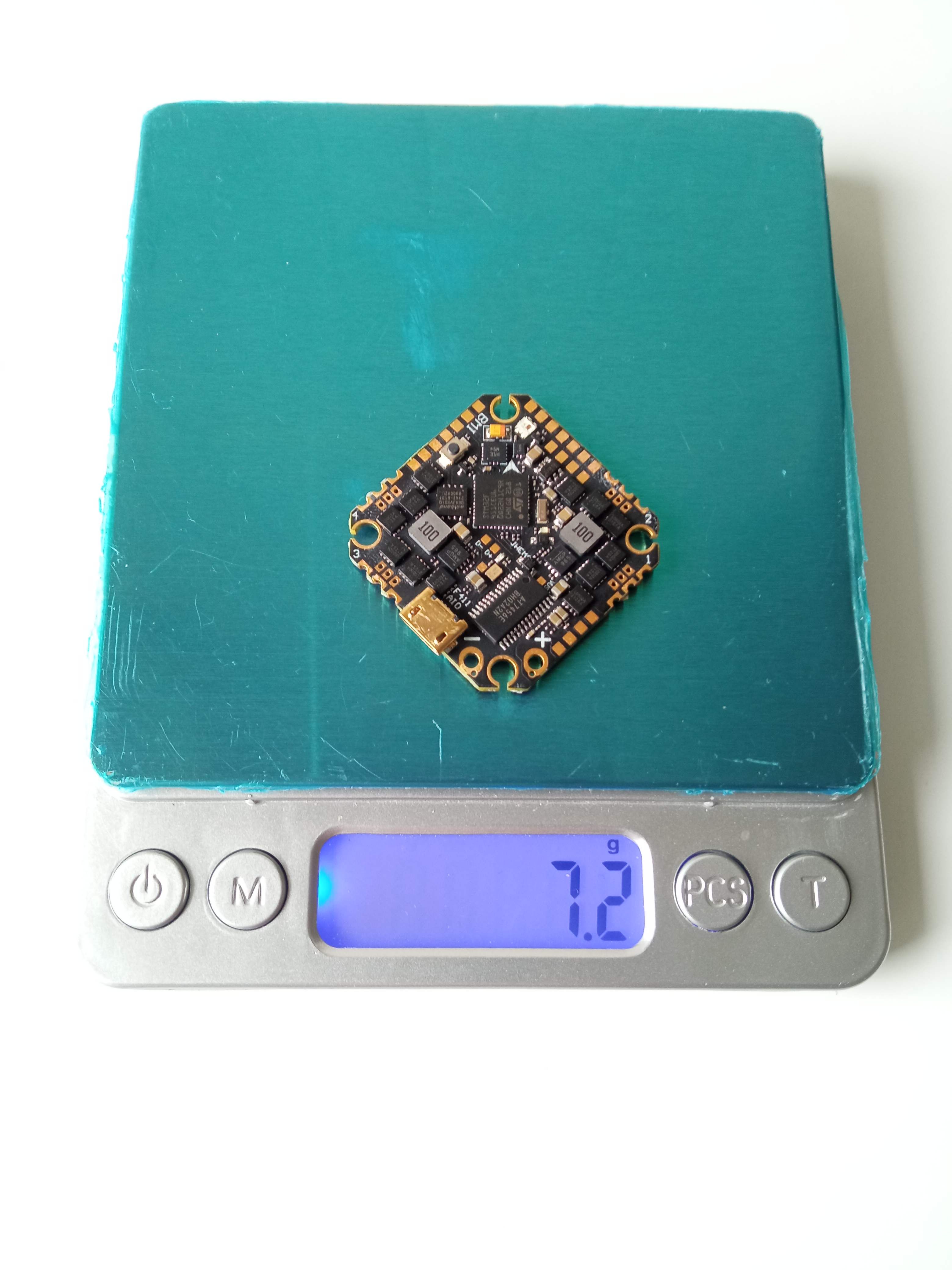

FC: JHEMCU GHF411AIO-BMI 40A F411 Flight Controller BLHELIS 40A 4in1 ESC 2-6S

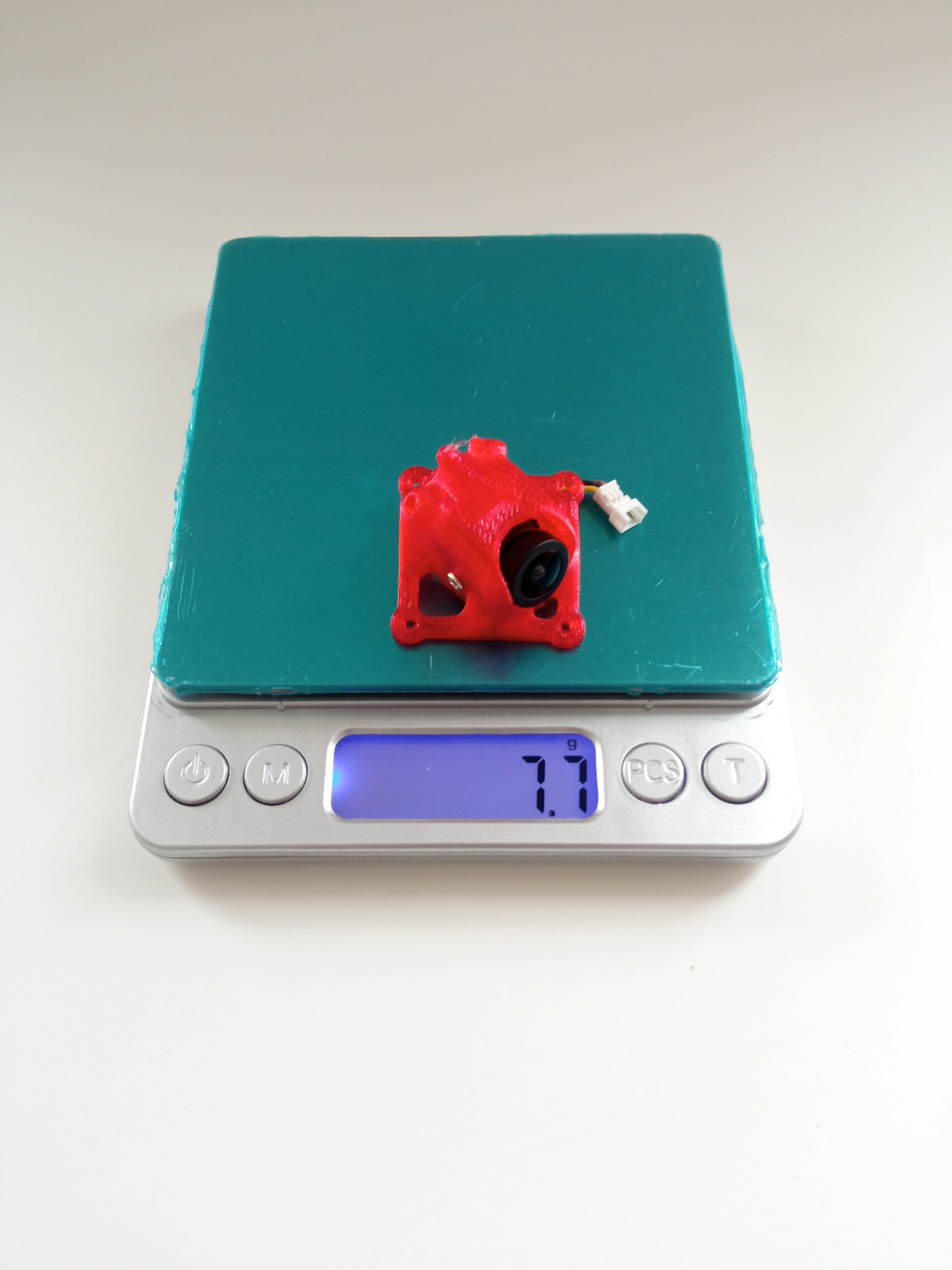

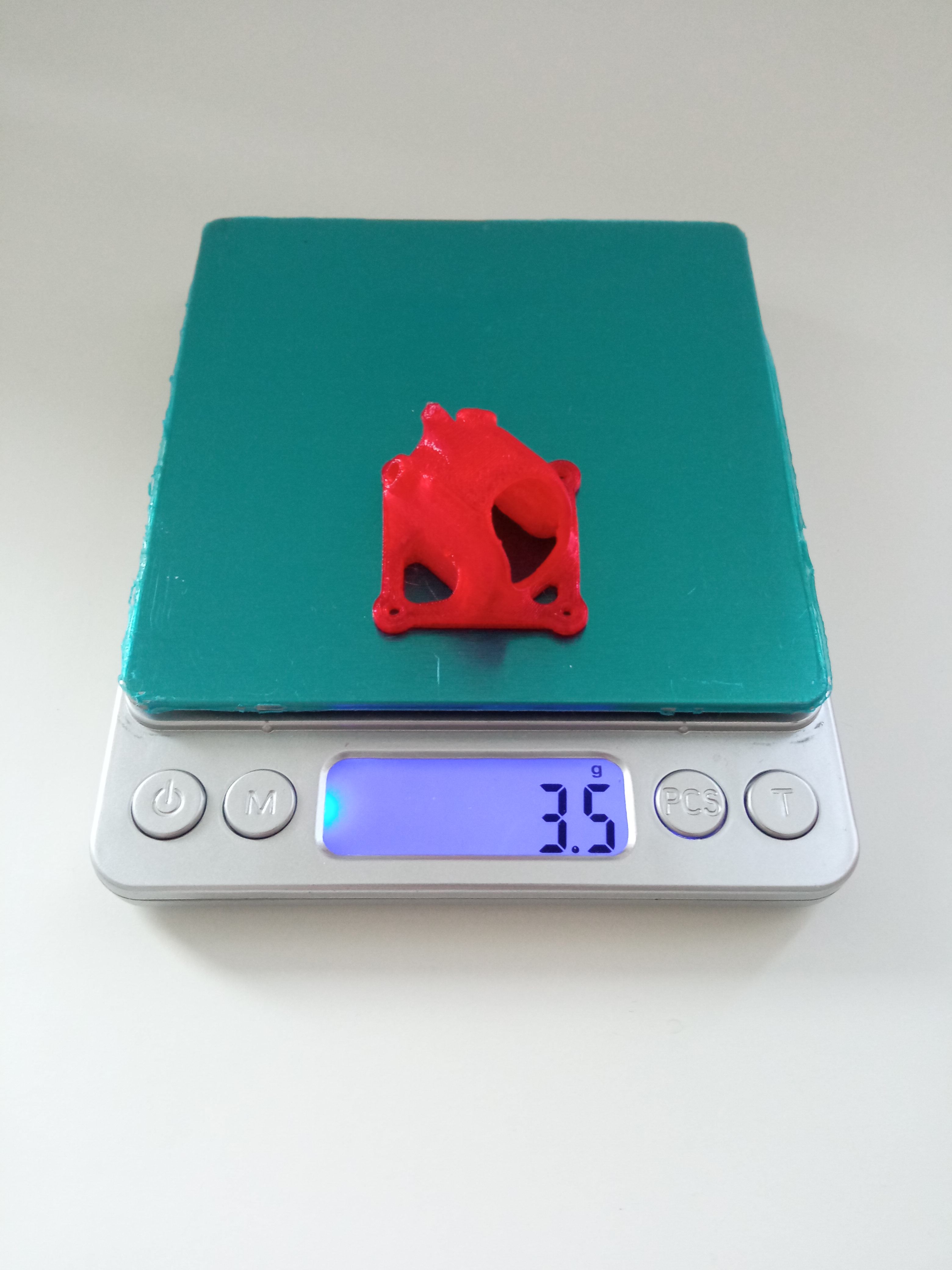

Canopy: ShenStar - 3D Printed Material TPU Camera Mount with 25.5x25.5mm

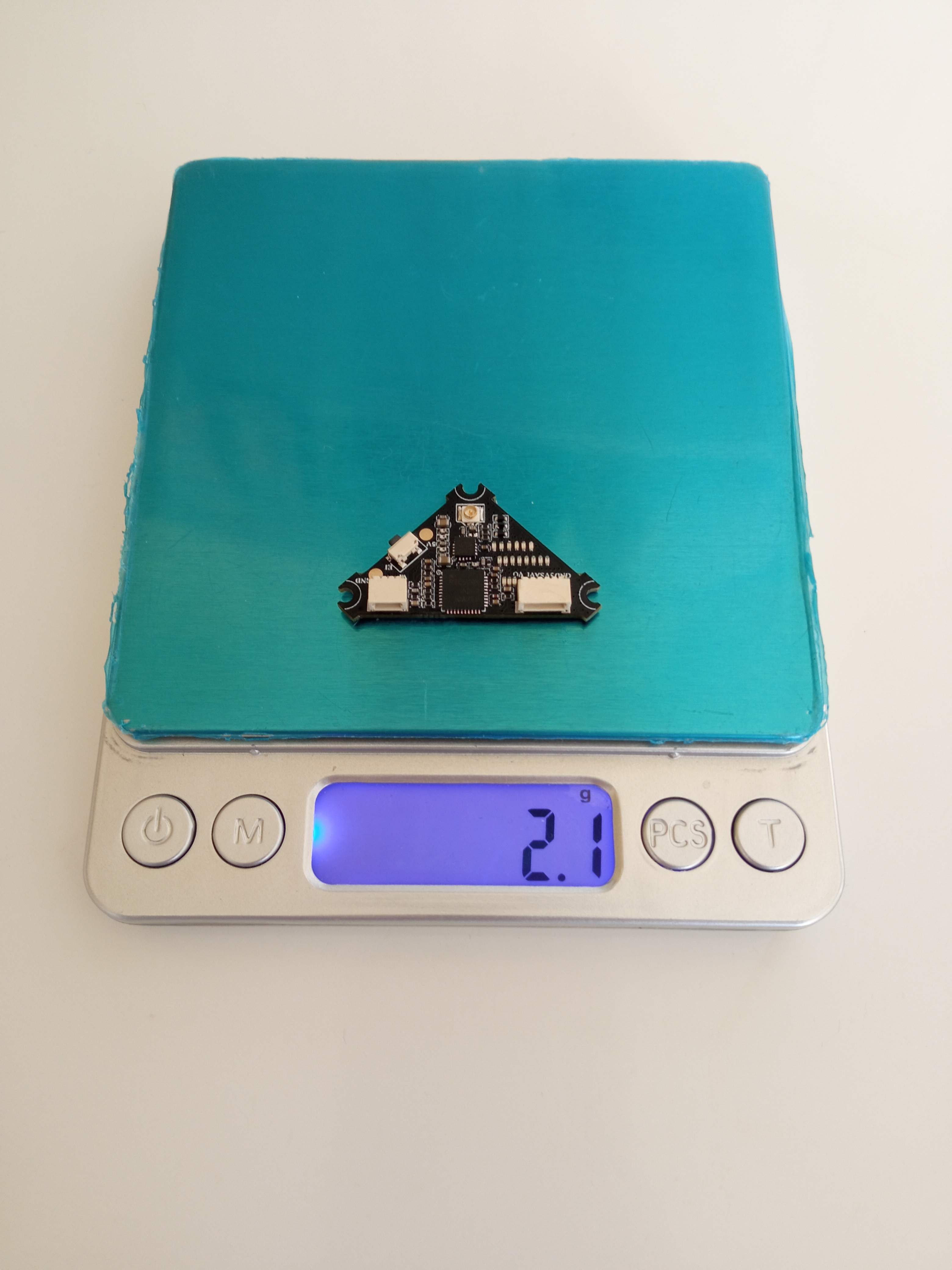

VTX: Happymodel Upgraded VTX 5.8G 40CH 25mW~200mW

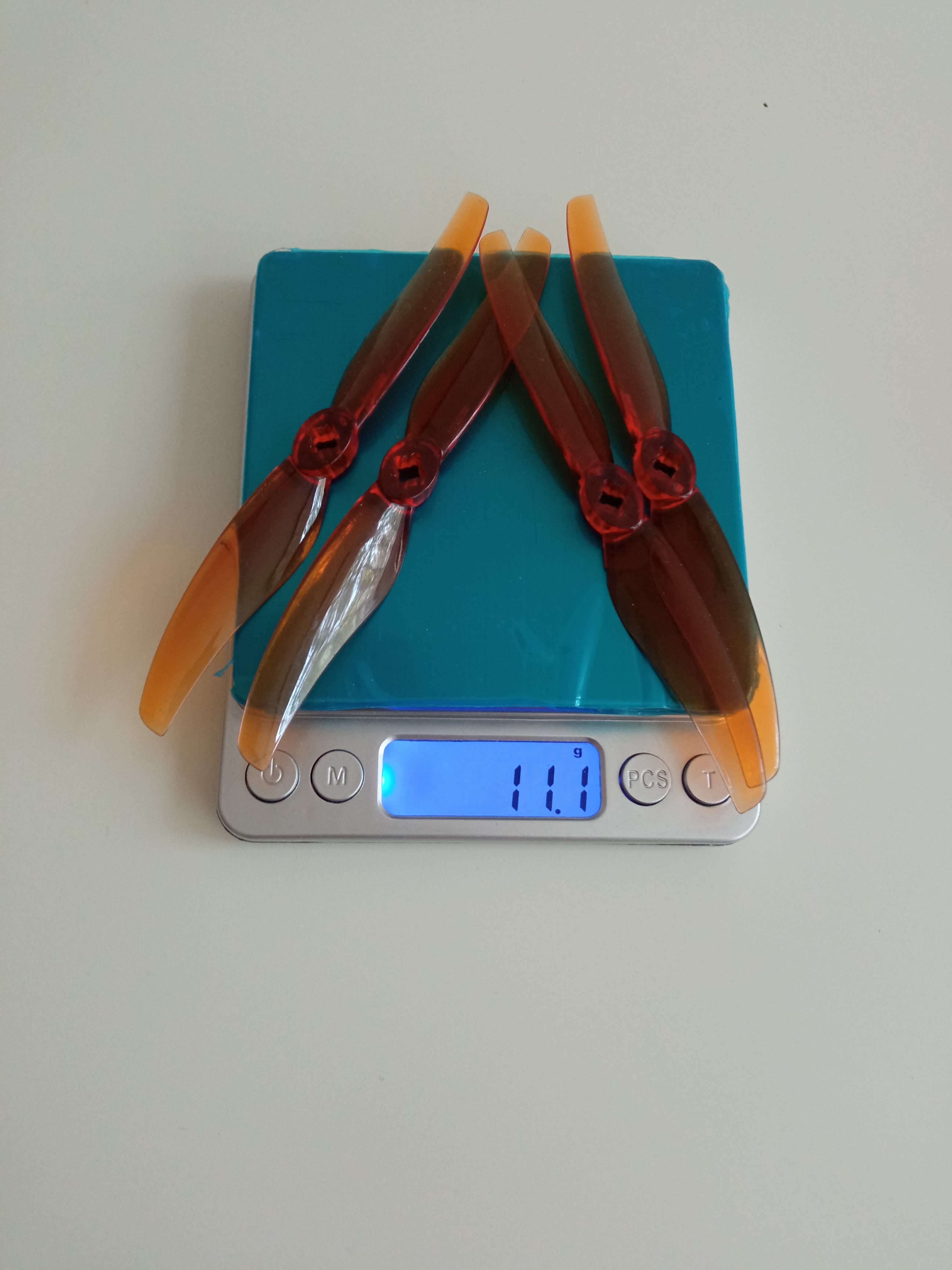

Propeller: 5030 2blade,

Gemfan LR 5126 Durable 2blade

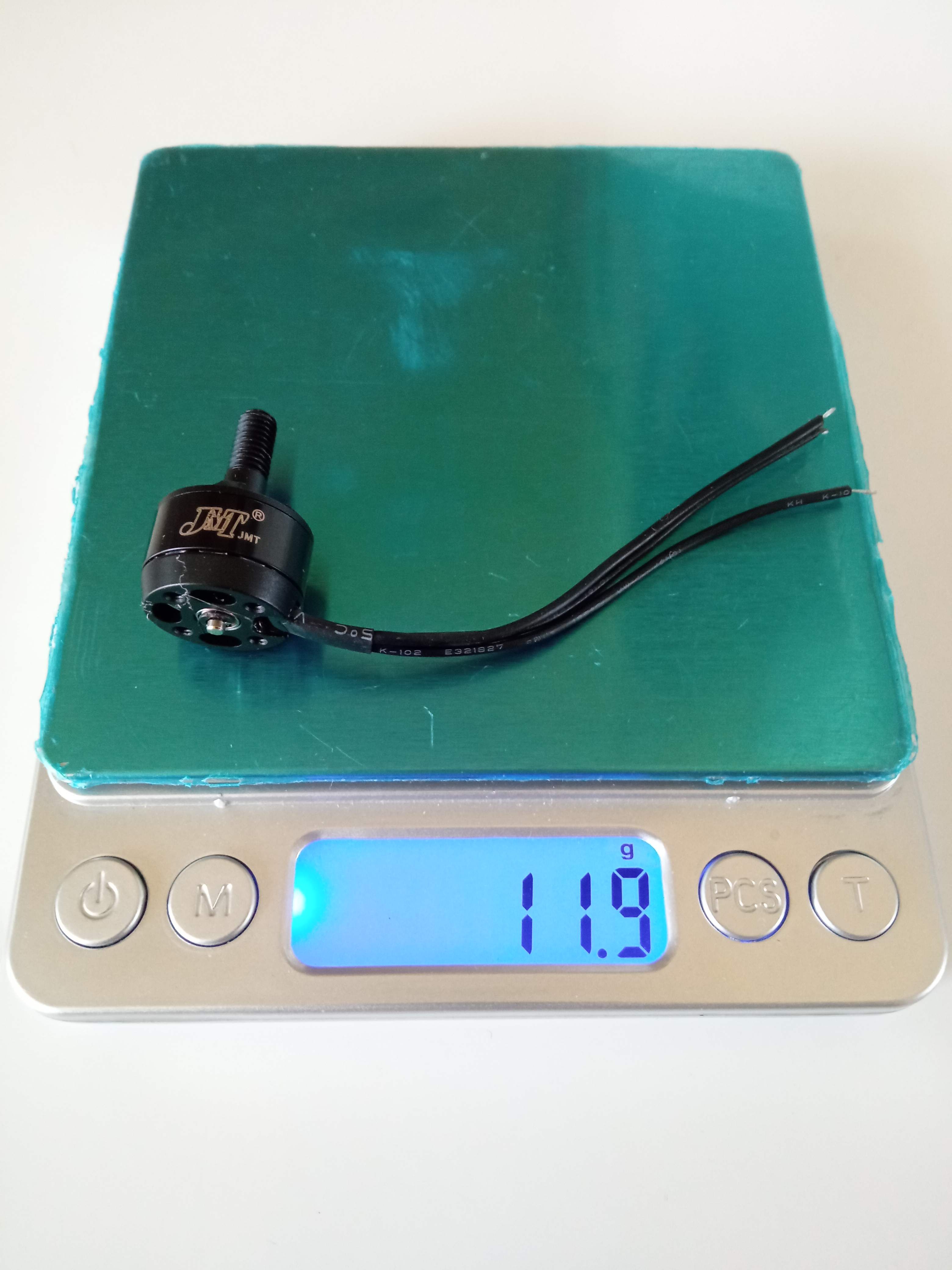

Motor: JMT 1306 3100KV (12g)

Camera: RunCam Nano 2

Receiver: XM+

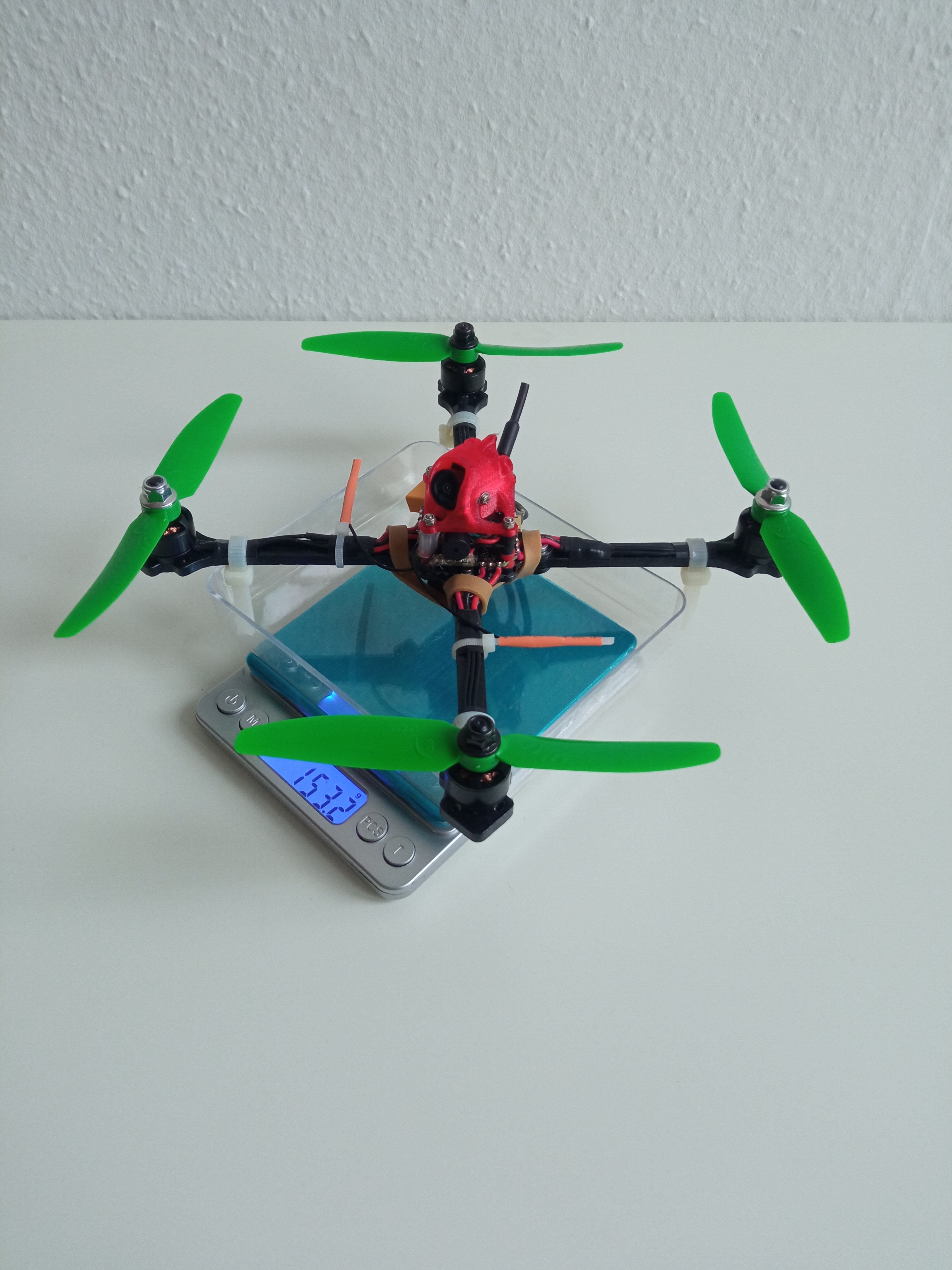

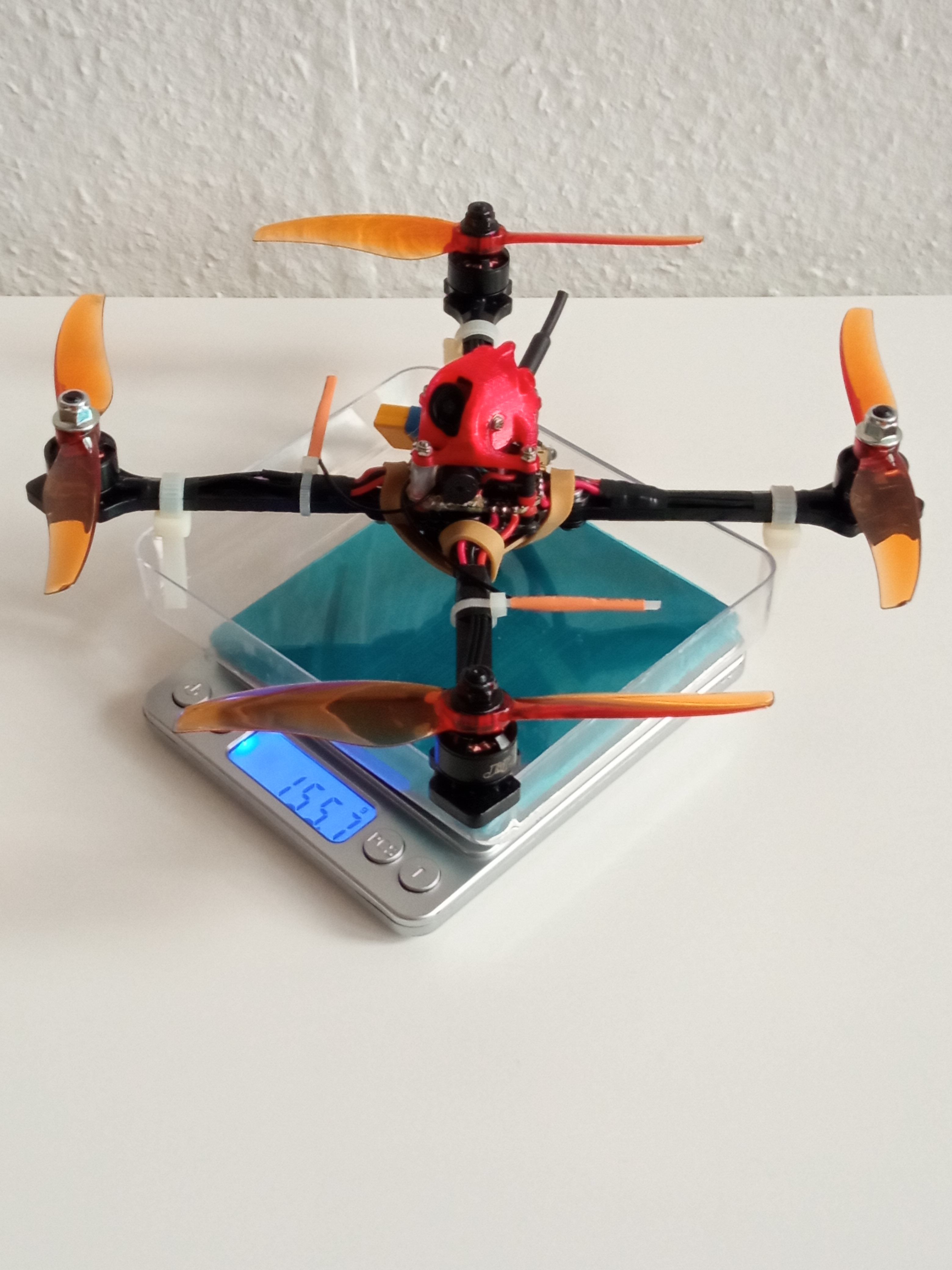

Weight: 156g


Battery:

Turnigy Bolt HV 3S 850mah (80g)

Turnigy Bolt HV 4S 850mah (102g)

Turnigy Bolt HV 4S 1000mah (121g)

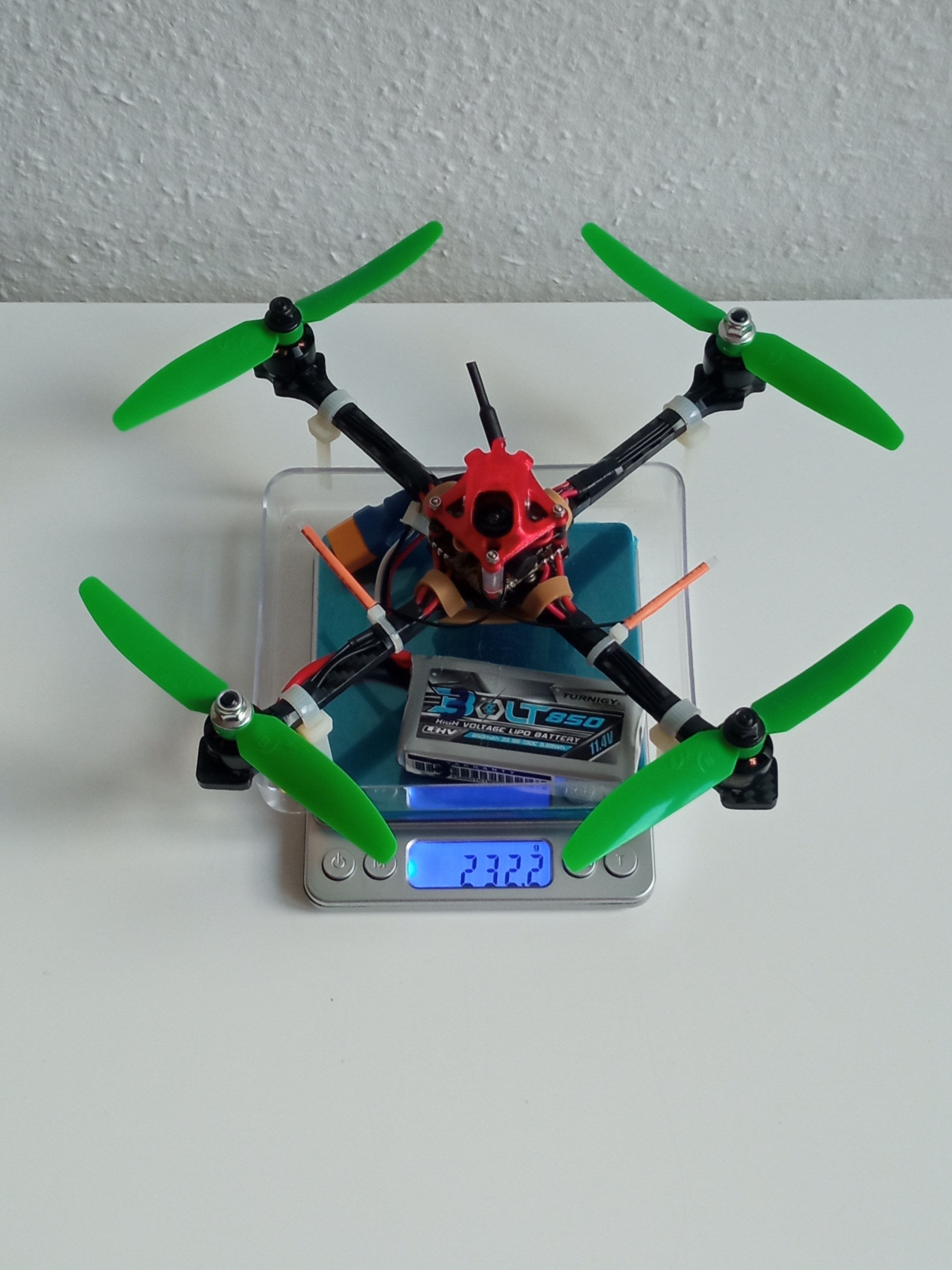

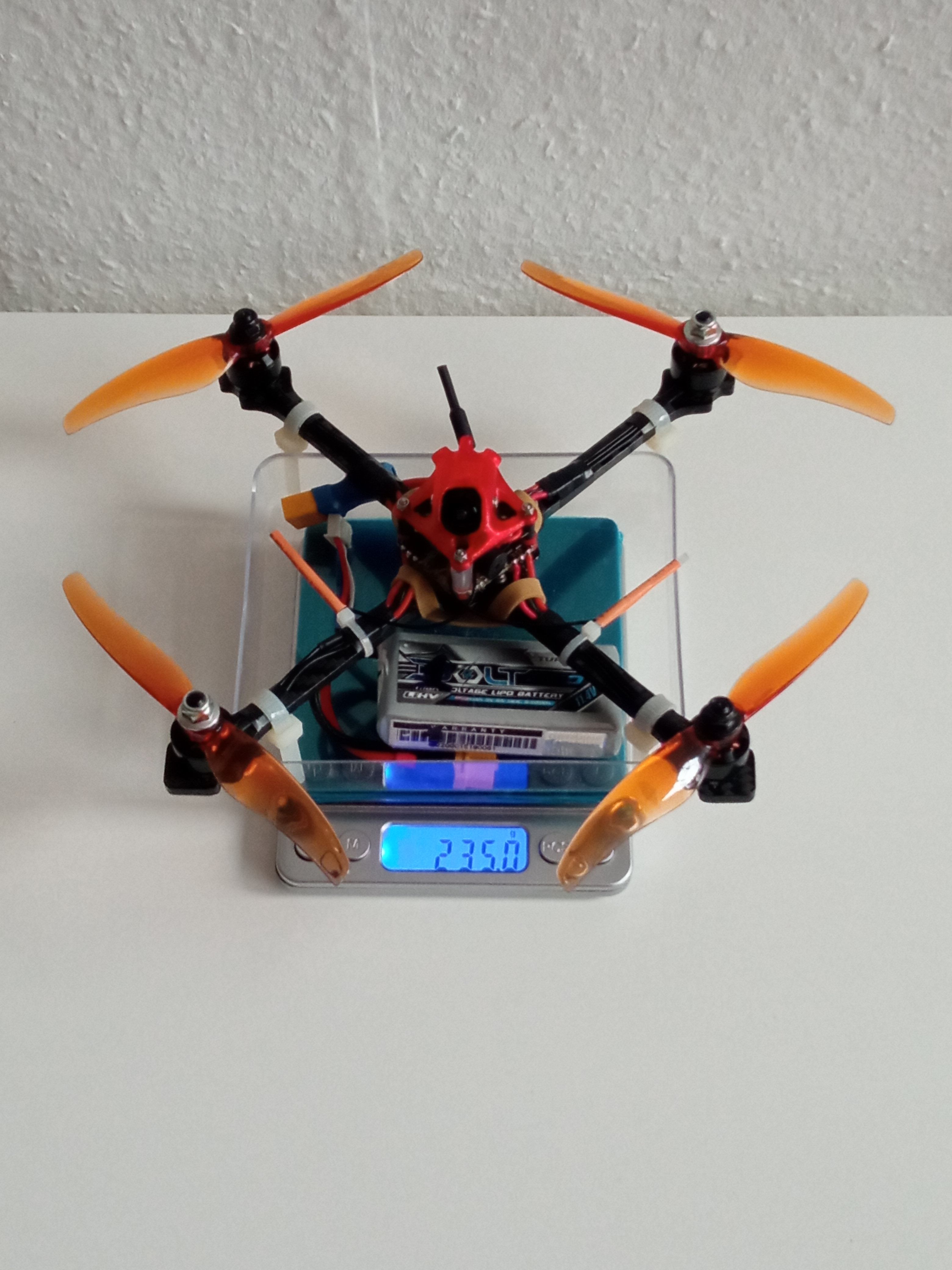

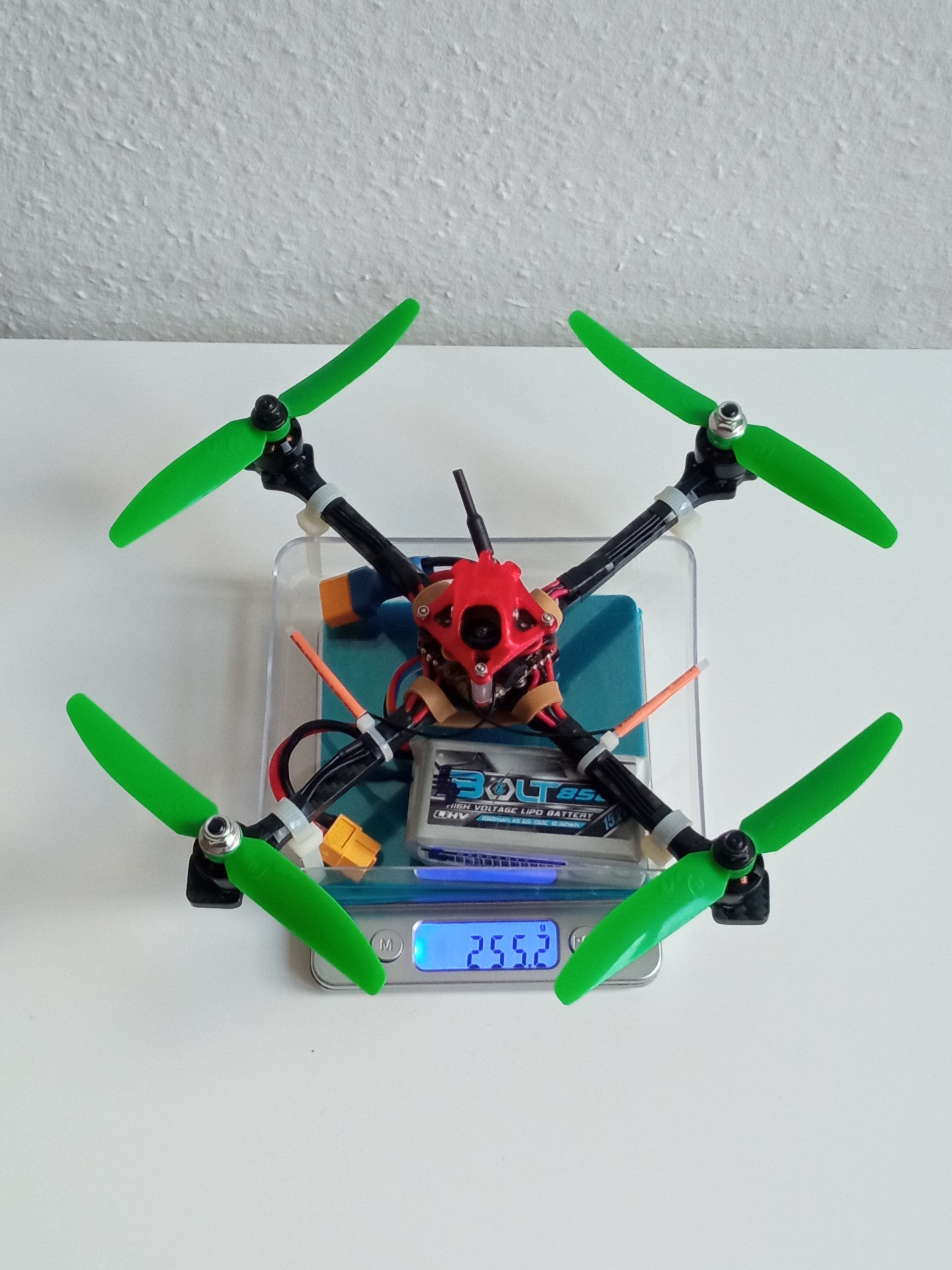

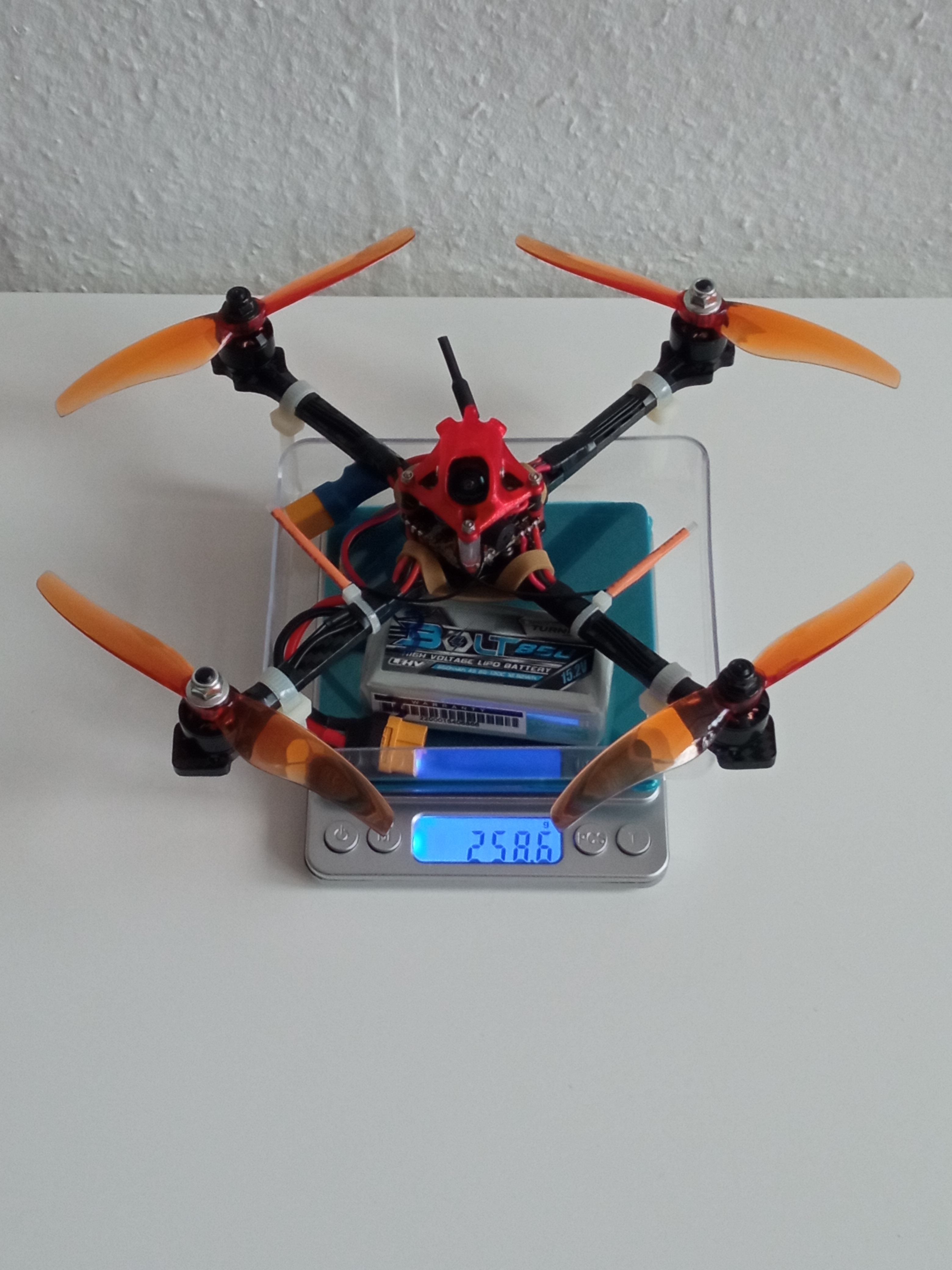

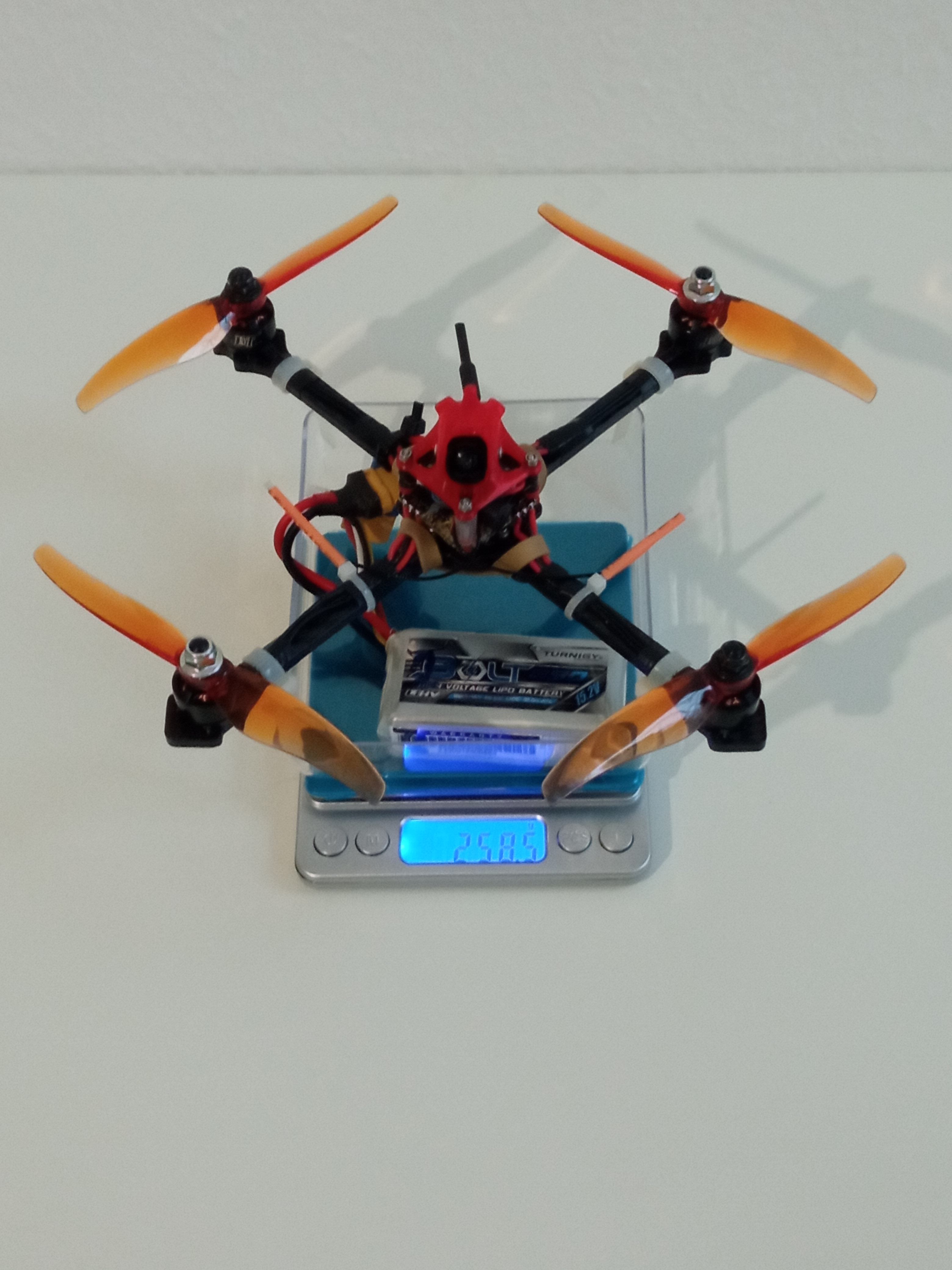

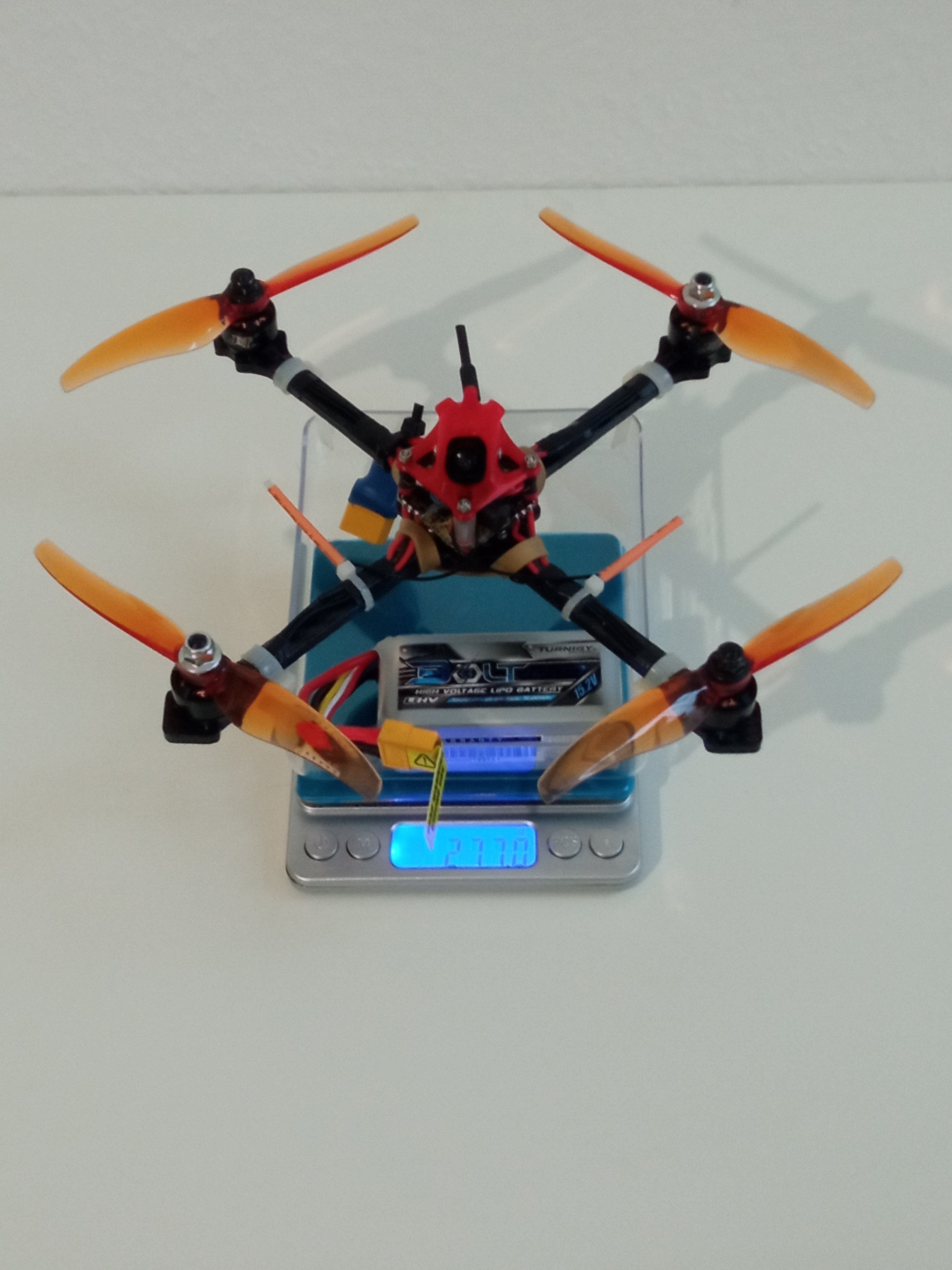

Summ weight: around 236-277g

Fly time: 4/7minutes



Source: RotorBuilds.com

Galerija

0.0
☆ ☆ ☆ ☆ ☆
Pagal 0 įvertinimus

Specifikacijos

  • RėmasYQ5 – cadre d'empattement de 5 pouces, 200mm, Support d'hélice de 5 pouces, 3 6S 30 60A, moteur 2004 2306, pour Drone à cure
  • FCJHEMCU Updated GHF411-HD AIO F4 OSD Flight Controller and Built-In 40A Bluejay 2-6S 4IN1 ESC
  • ESC-
  • MotoraiJMT – Mini moteur sans balais 1306 3100KV CW CCW pour Drone, 12a/16a/20a ESC RC, bricolage, Multicopter
  • PropeleriaiGemfan LR5126-2 for Long Range
  • VTXVTX commutable pour RC FPV Racing Drone Quadcopter Parts Accs, Mod Ymodel ature ula7 Part Upgrade, 5.8G 40CH, 25mW ~ 200mW
  • KameraBAYCKRC – caméra analogique COOEYE EL1 NANO FPV, 1000TVL, 150 ° FOV 1.8mm, objectif 4:3 NTSC, convient aux Drones RC FPV qua
  • ImtuvasFrSky XM Plus Micro D16 SBUS Full Range Mini RC Receiver Up to 16CH for RC FPV Racing Drone
  • Svoris-
