HyperBee

2026 freestyle 5" build

new build, old stack, AI tuned

wanted a 3-blade 5.1 inch prop quad with a little extra power on tap to have fun with.

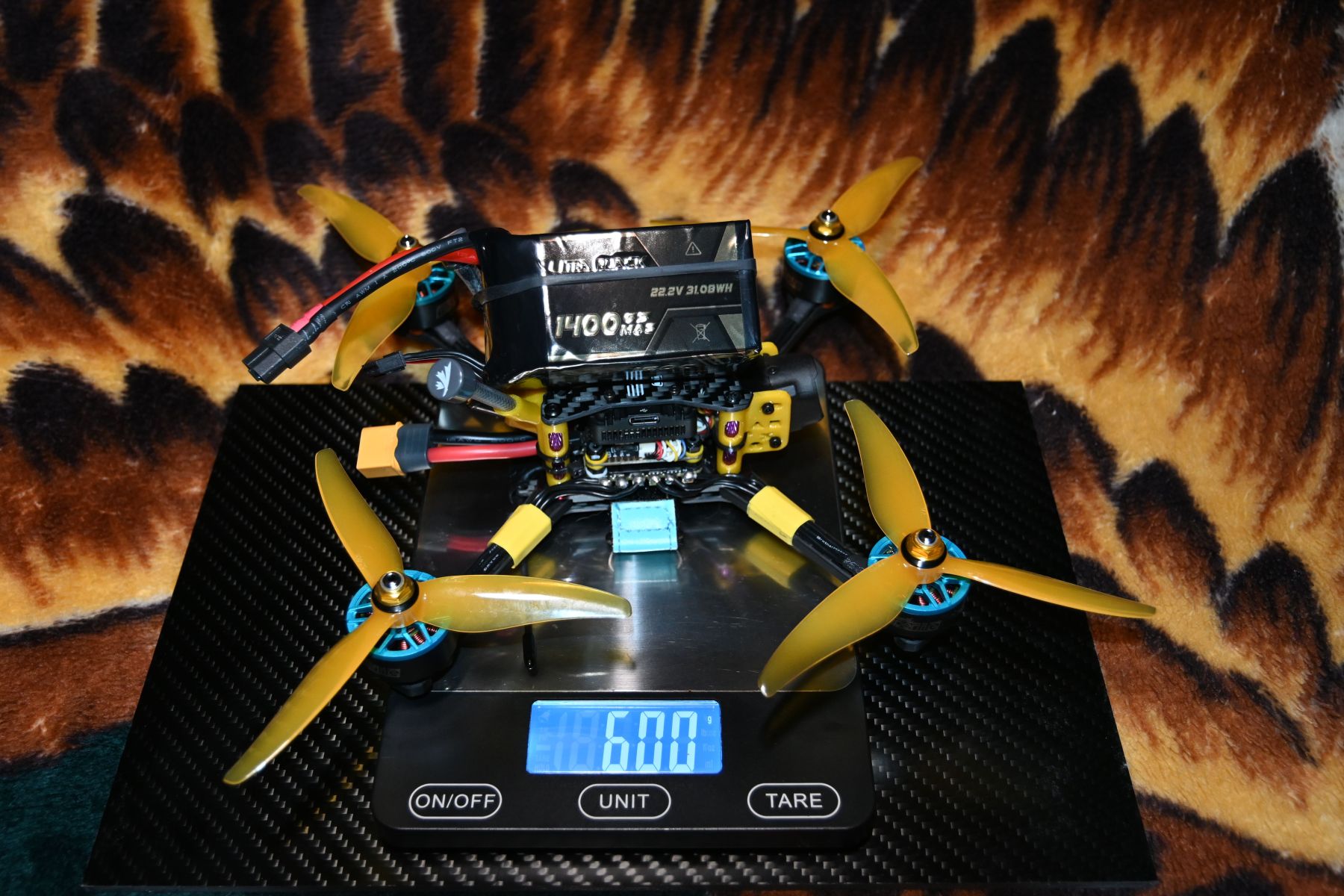

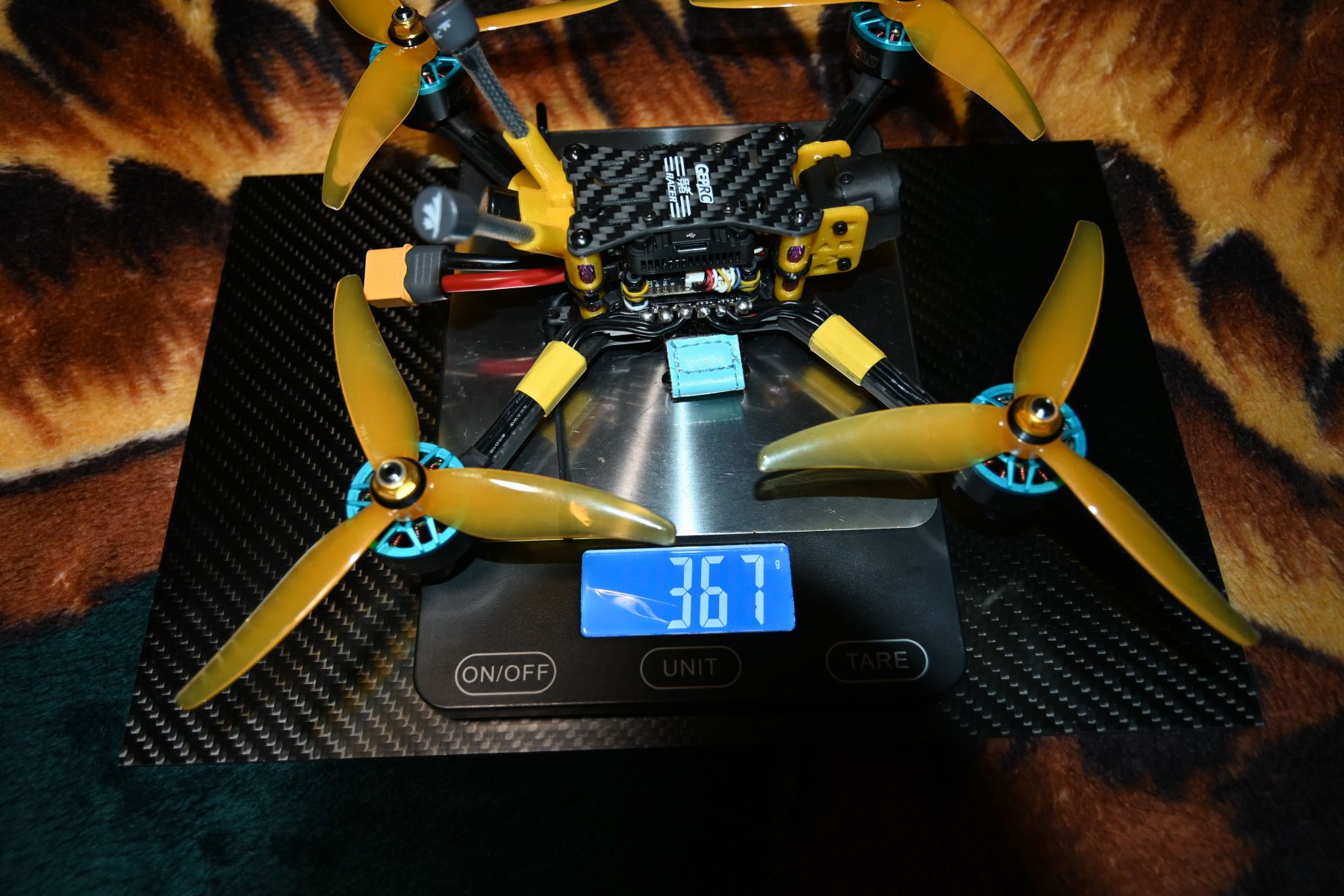

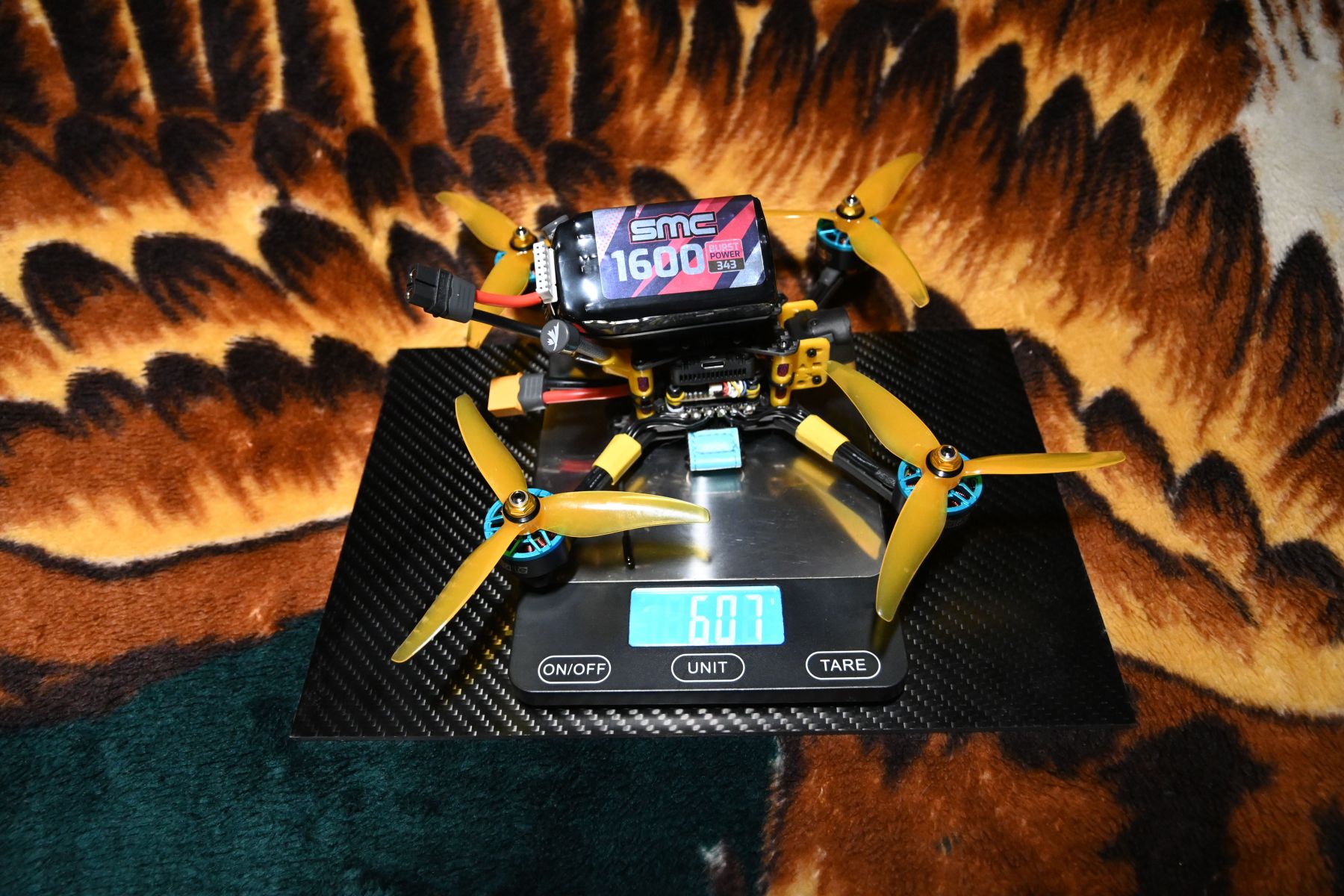

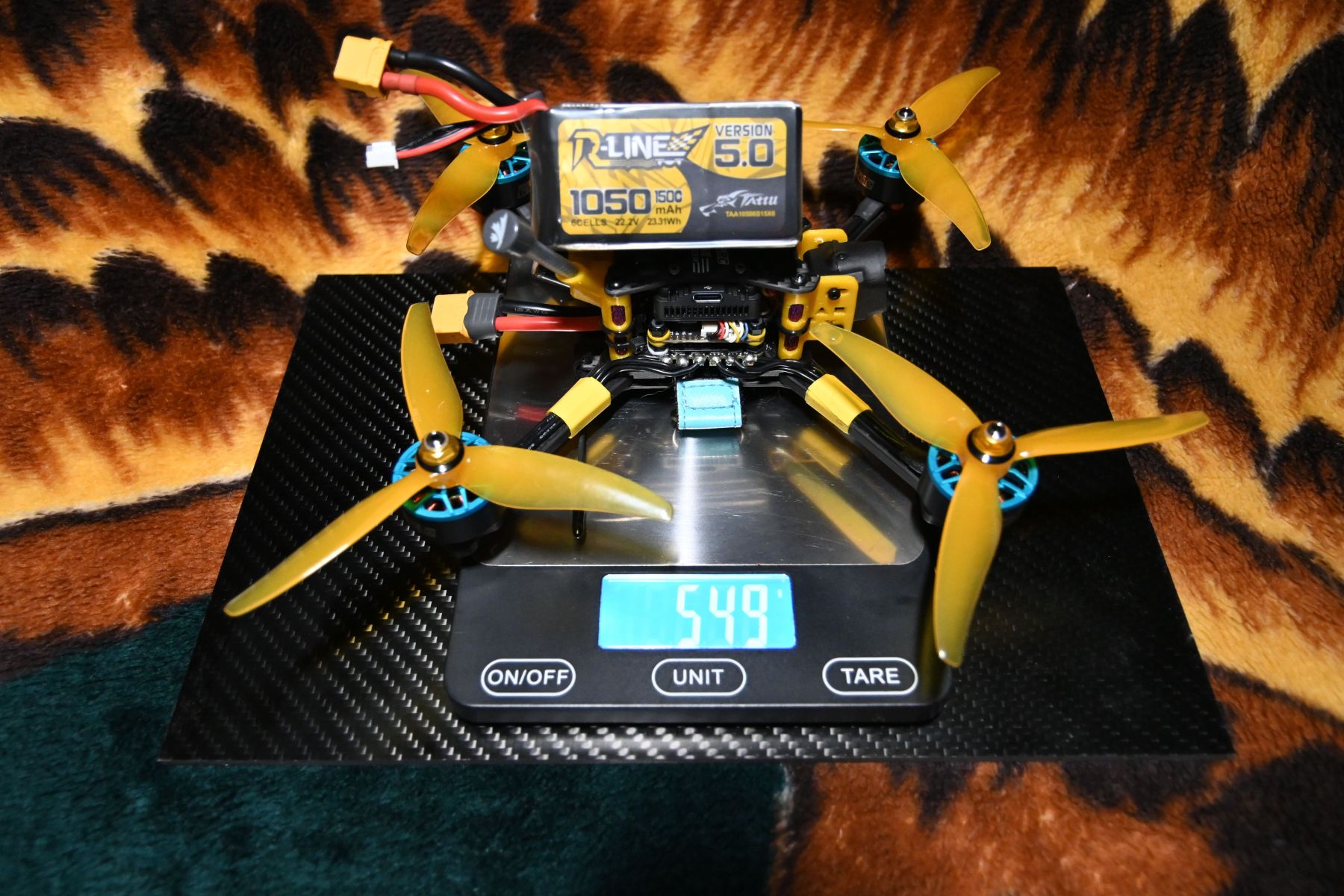

focus was thrust to weight but not completely min maxxed, reusing an old full sized stack.

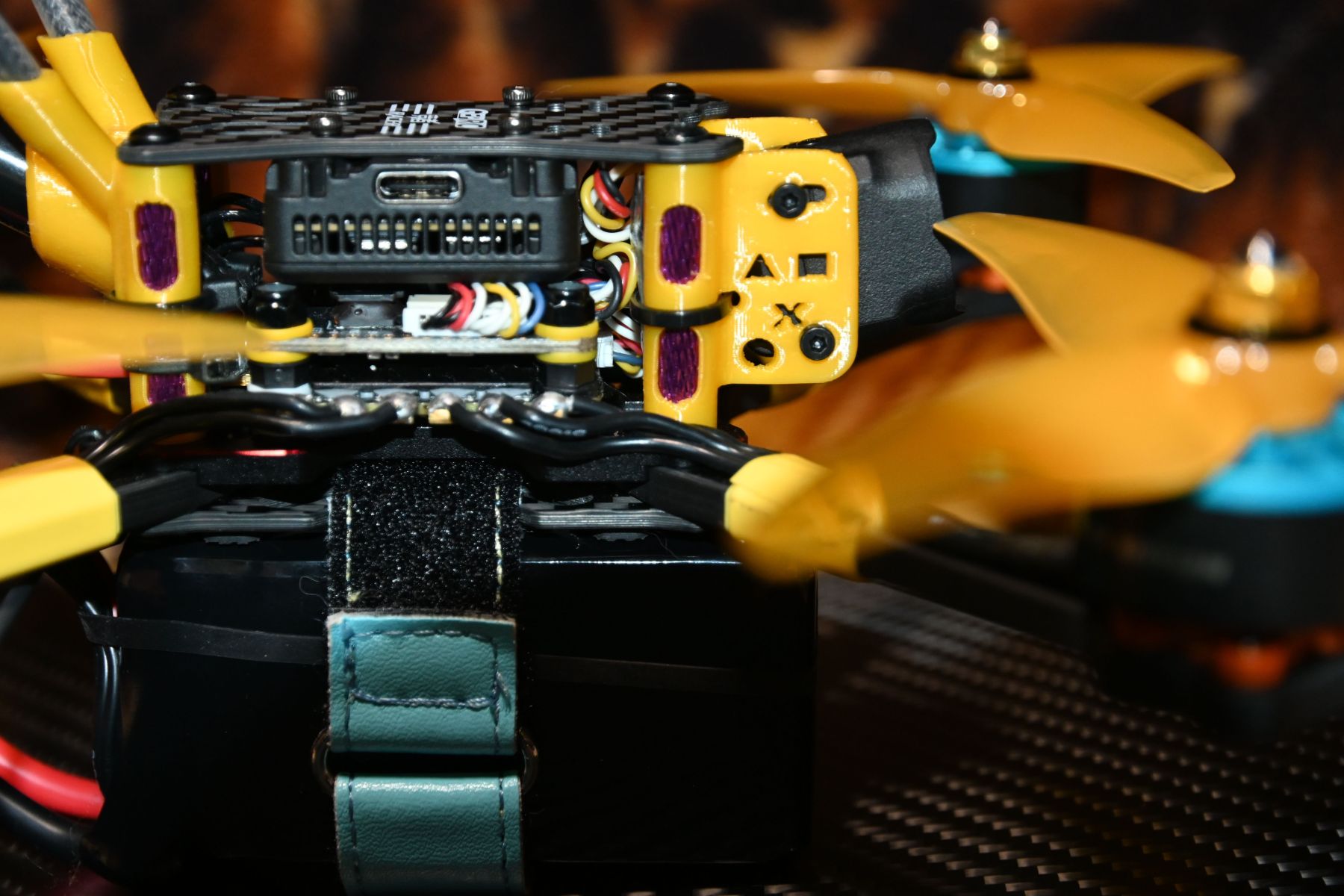

board orentiation isn't ideal because of the limited space. have to undo 2 bolts to get to the usb port.

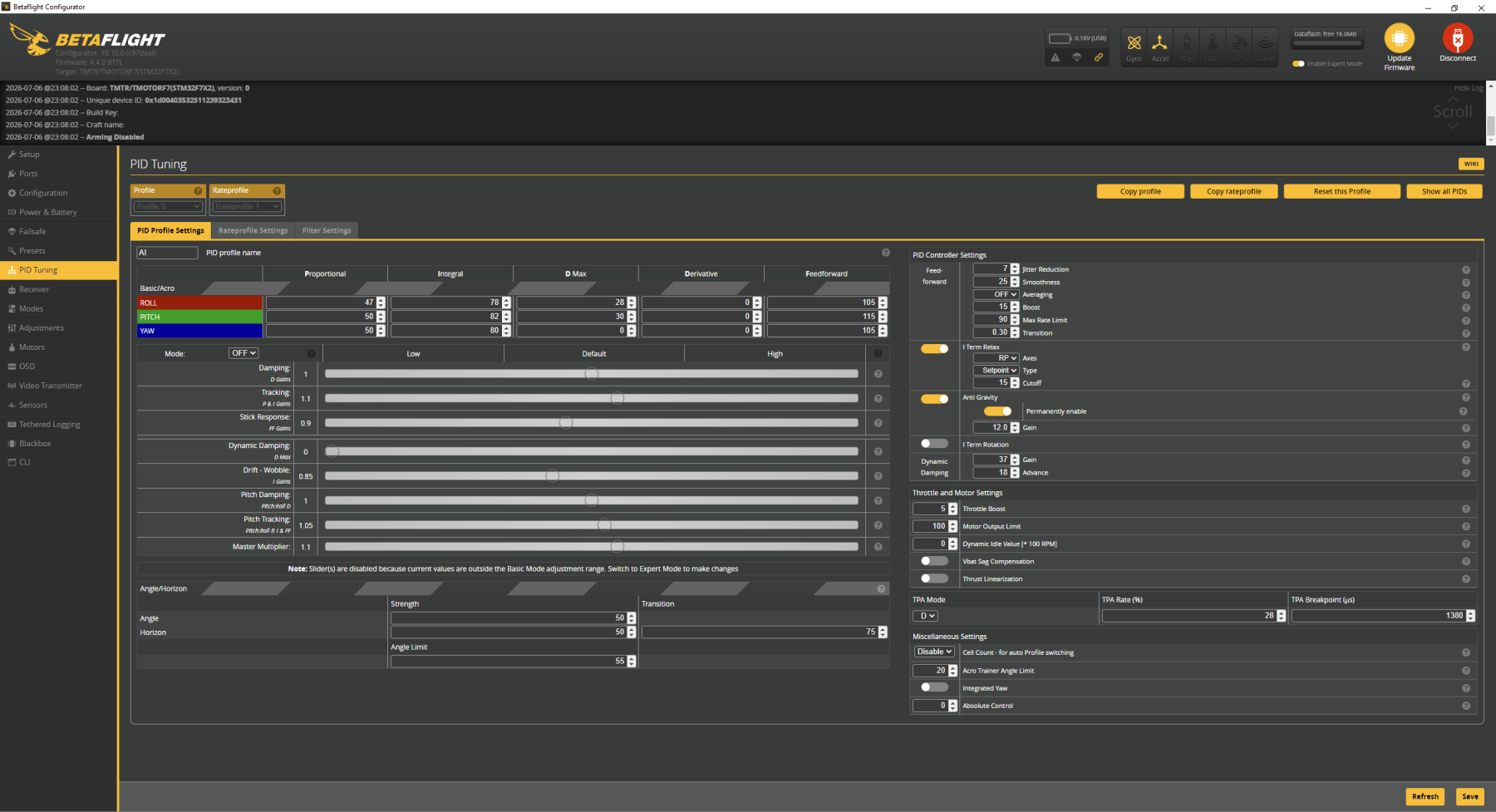

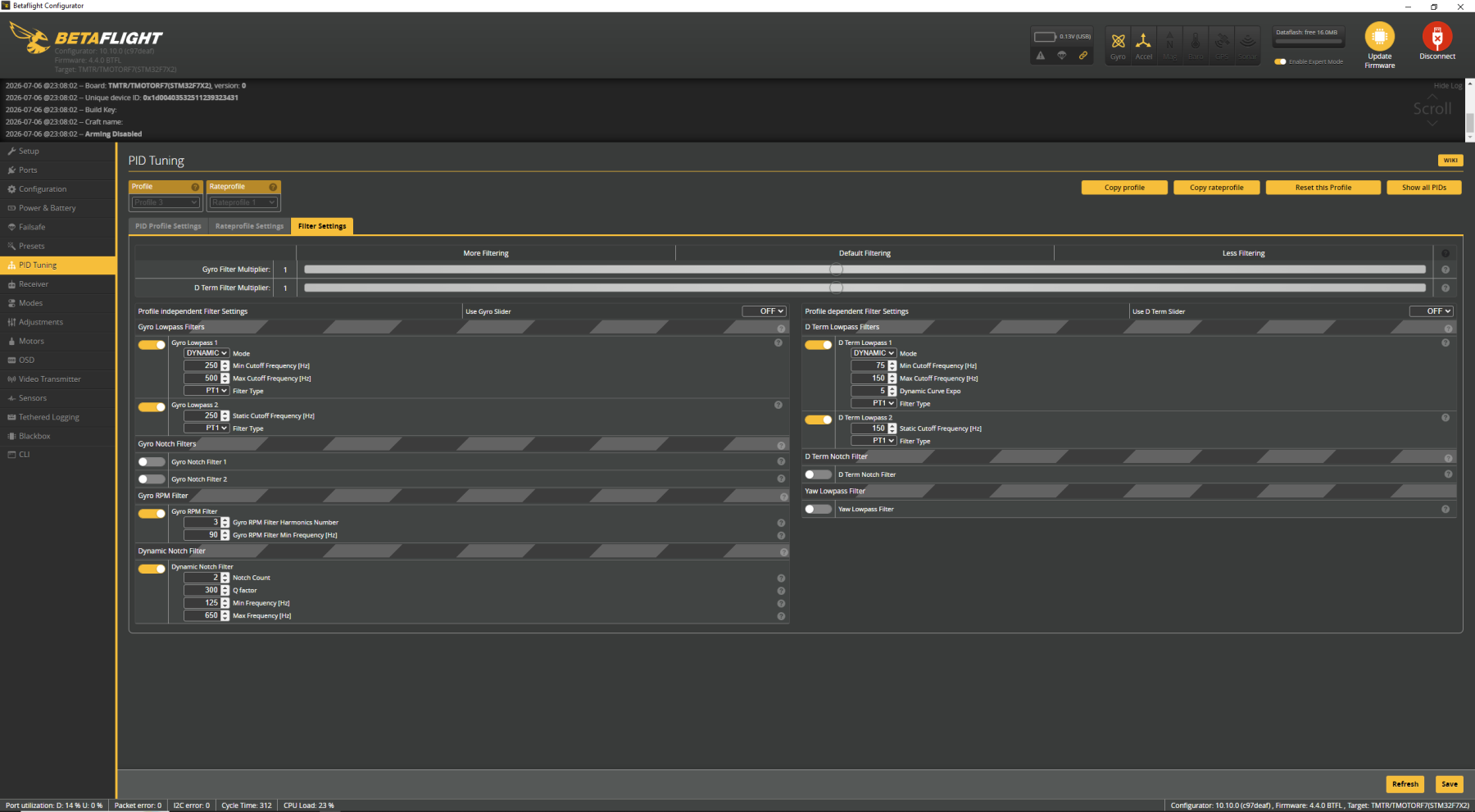

Grok and Gemini aruging with eachother and correcting eachother to get the black box tune correct. Asked for a conservative tune to keep motor temps low.

Parts list:

Frame - GEPRC Racer 5"

Motors - Hyperlite 2408.5 1922kv

Flight Controller - T-Motor F722 V1.1 HD

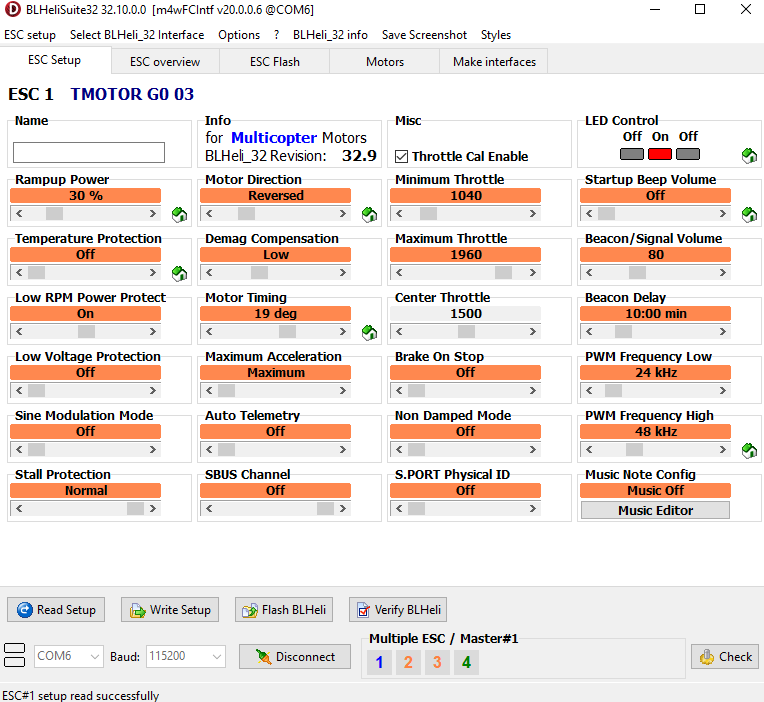

ESC - T-Motor F55A Pro II

Propellers - Gemfan 51466-3

Reciever - CRSF nano

Capacitor - Panasonic FM 1000uF 35v Low-ESR Aluminum Electrolytic

3D printed parts:

https://www.thingiverse.com/thing:7379895

https://www.thingiverse.com/thing:7379893
