MP 3"

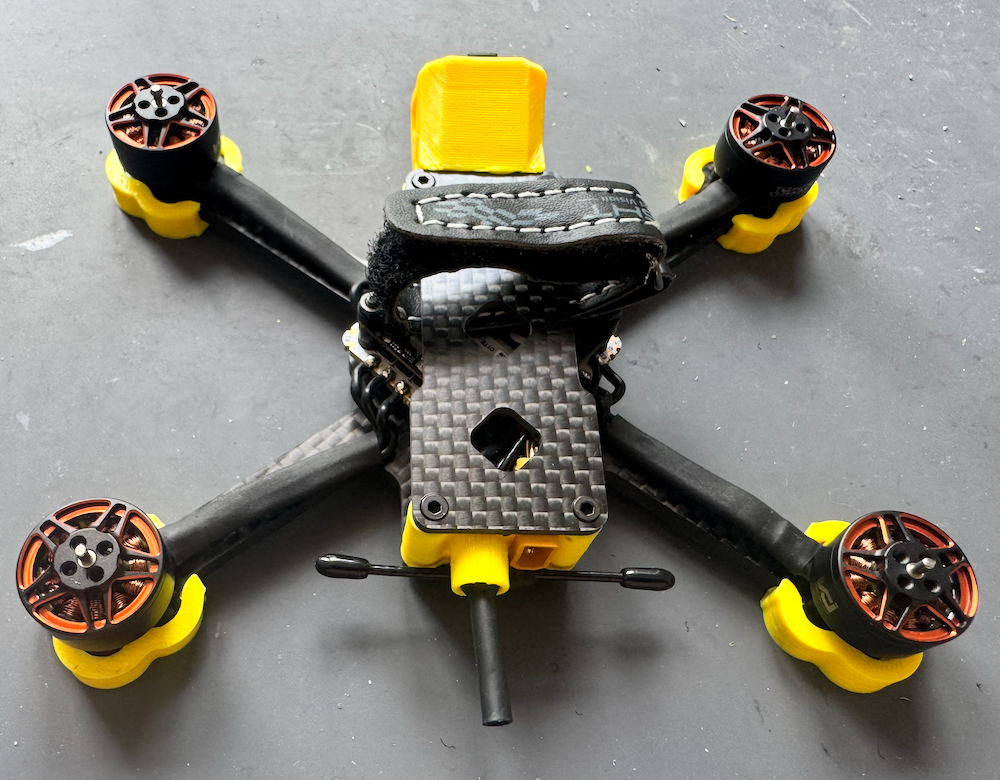

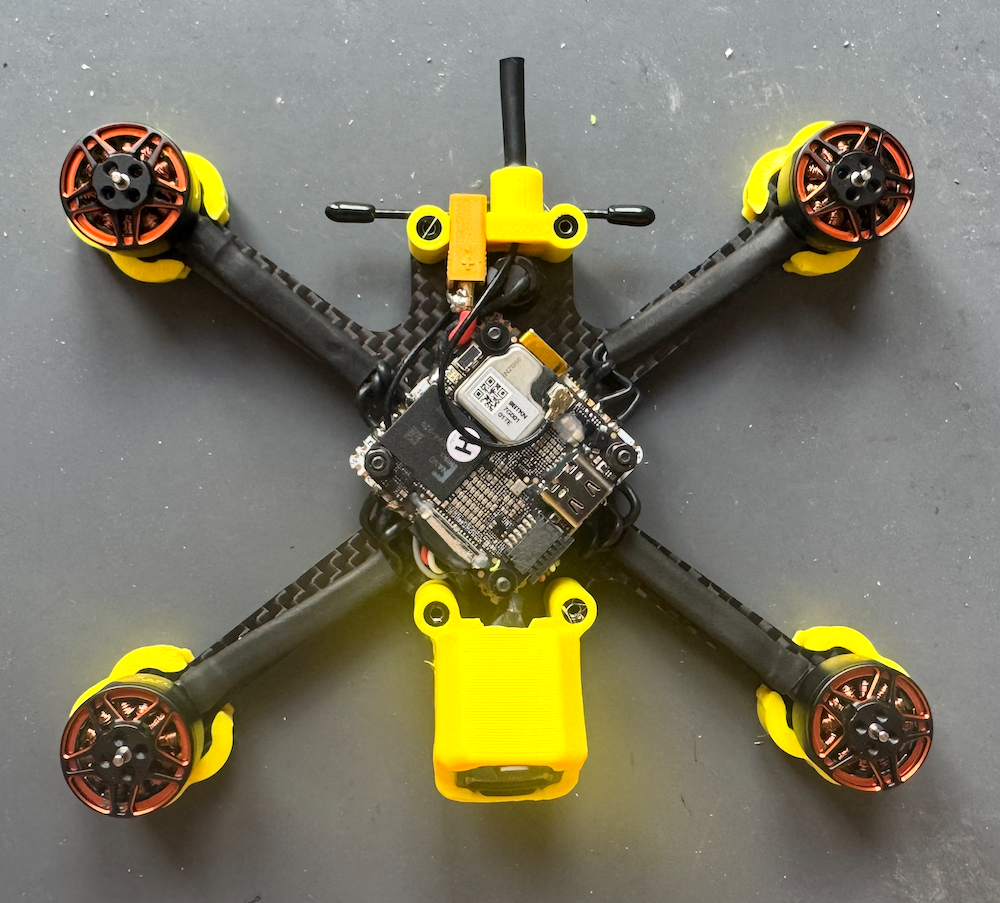

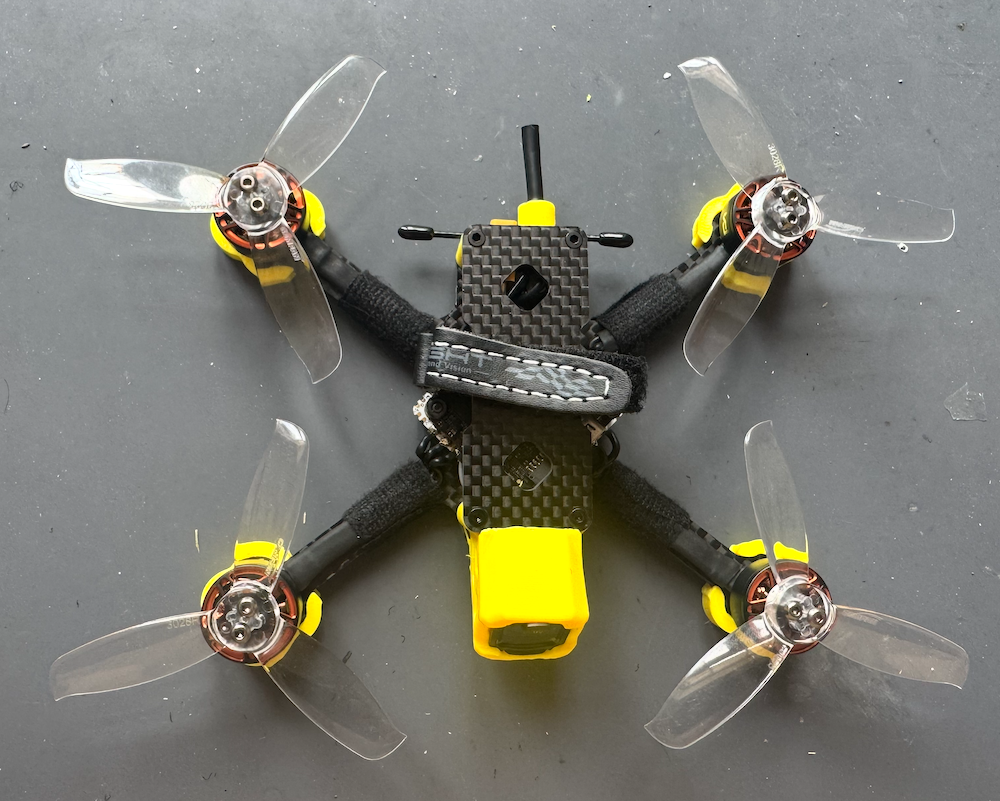

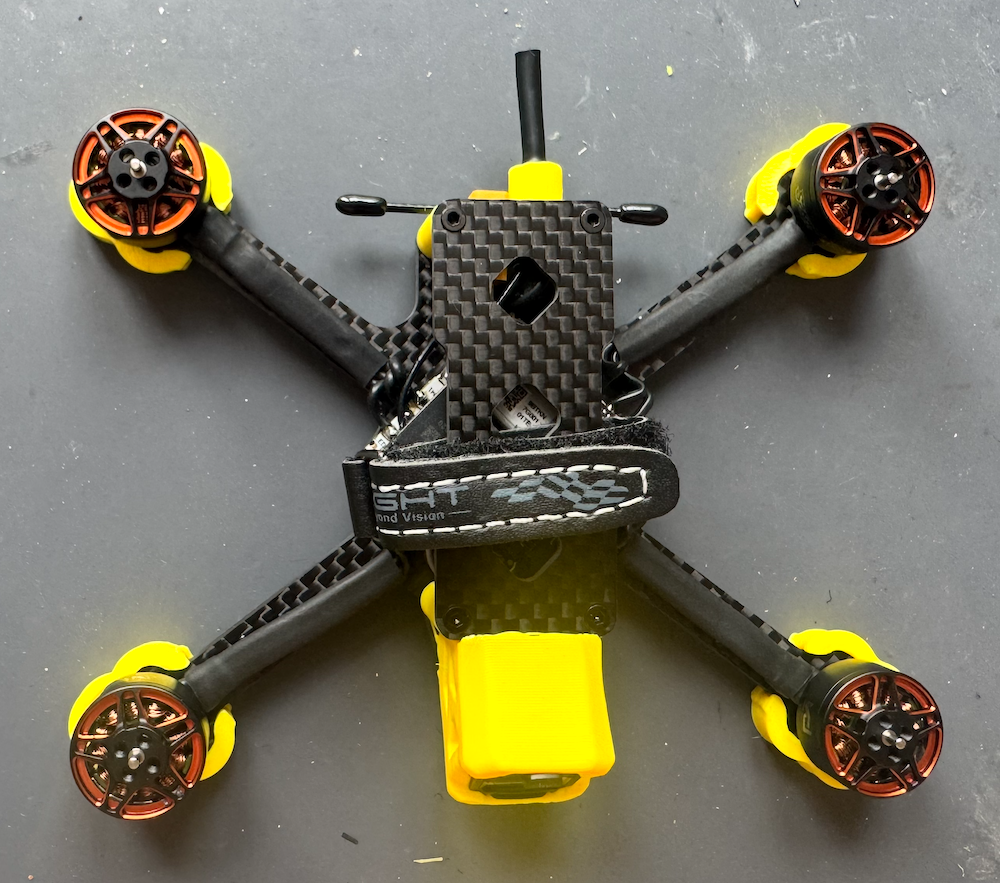

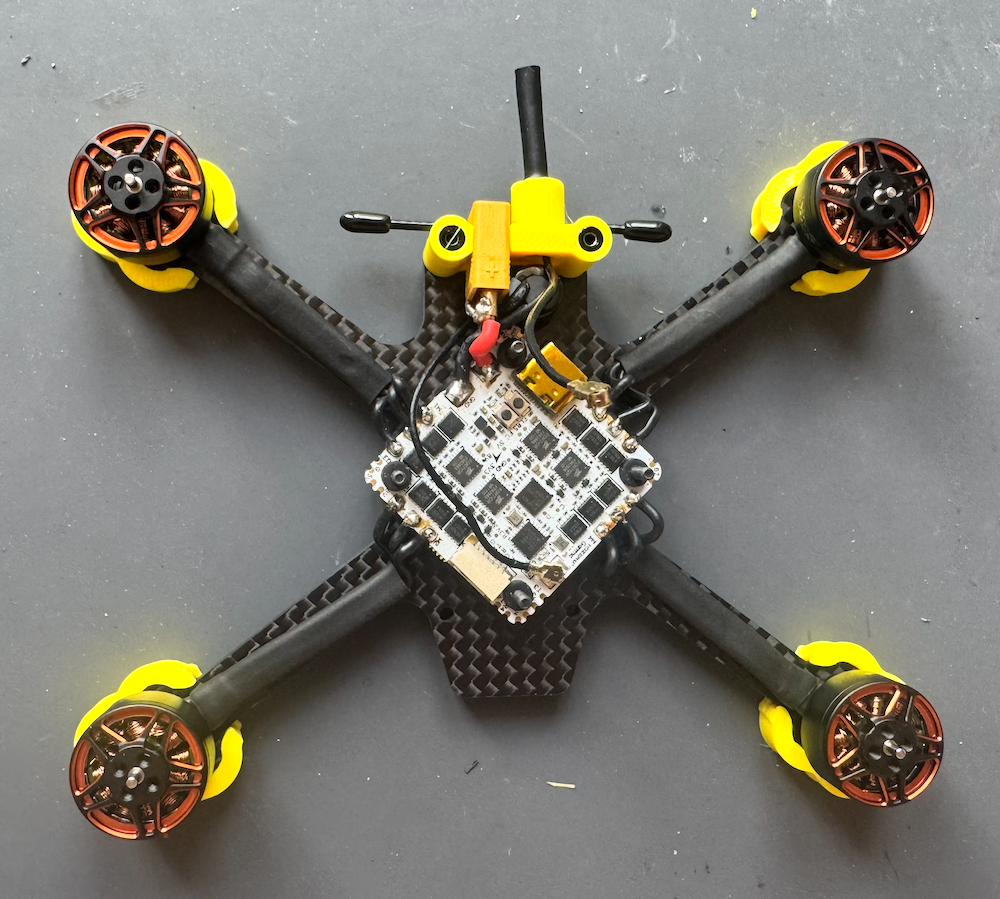

A 3 inch drone with DJI O4 air, and on board capacitor and XT30 plug. Along similar lines as the Kayoumini or the 533 cambam or Armattan Tadpole, but designed for 3S or 4S hardware. Frame was designed by myself to fit around the hardware I wanted to repurpose into a 3 inch, the HDZero gamma AIO and the DJI O4 wide air unit, which did not fit well in the available 2S solutions. Paired with VCI Spark 1505 4300kv motors and a Tattu 850mah 4S HV LiPo, this bird is loads of fun. And no wires sticking out of it. Very clean build, very compact, very portable.

The frame was added a front lip to accept the same camera mounts as the Kayoumini (with small modification). The 1-2S AIOs with the USB connector on the bottom will NOT work with this frame. The frame is intended for flight controllers with USB connectors on the side. It has good flight times (8 minutes), while preserving the feel of a 5inch drone. It will fit a Panasonic 330µf 25V capacitor inside the frame. AUW 204g.

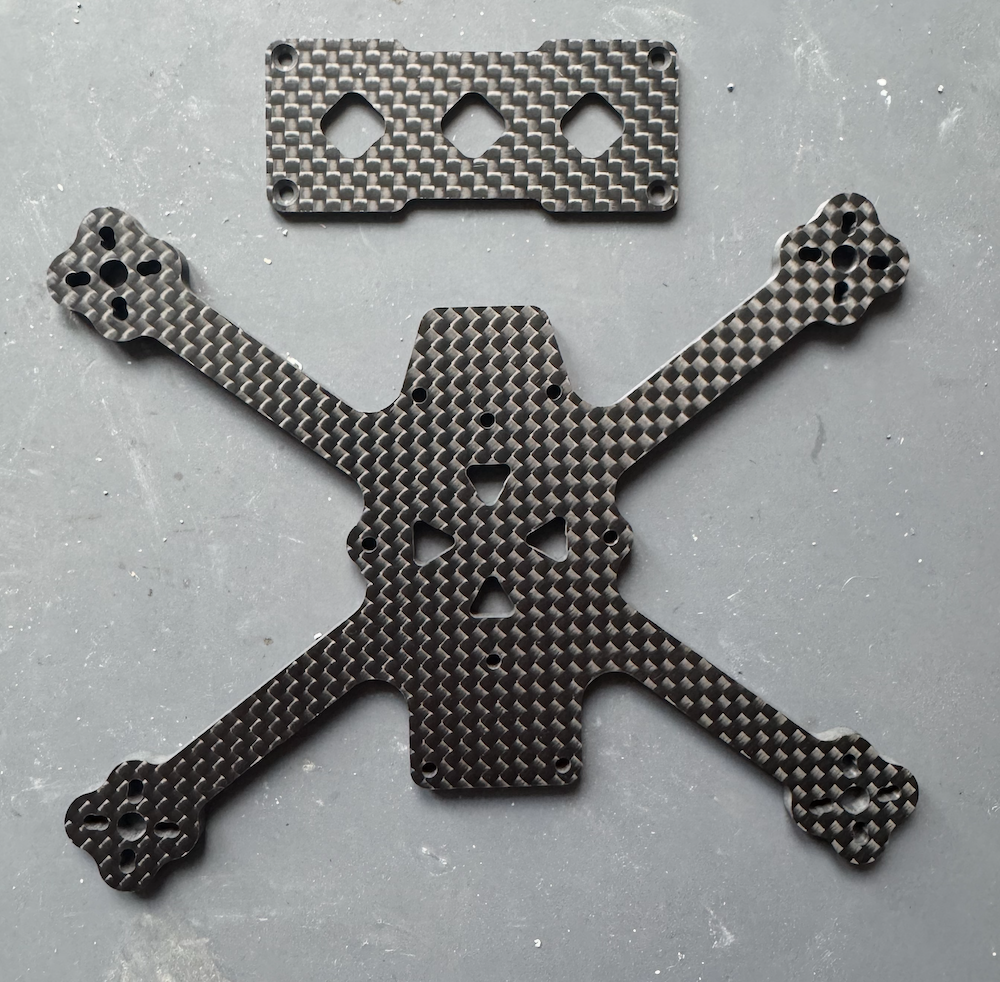

This is NOT a commercial frame. You can download the DXF files below and have a company like CNC Madness cut them for you. You can purchase the carbon frame and hardware at CNC Madness here: https://cncdrones.com/mp-3-inch.html.

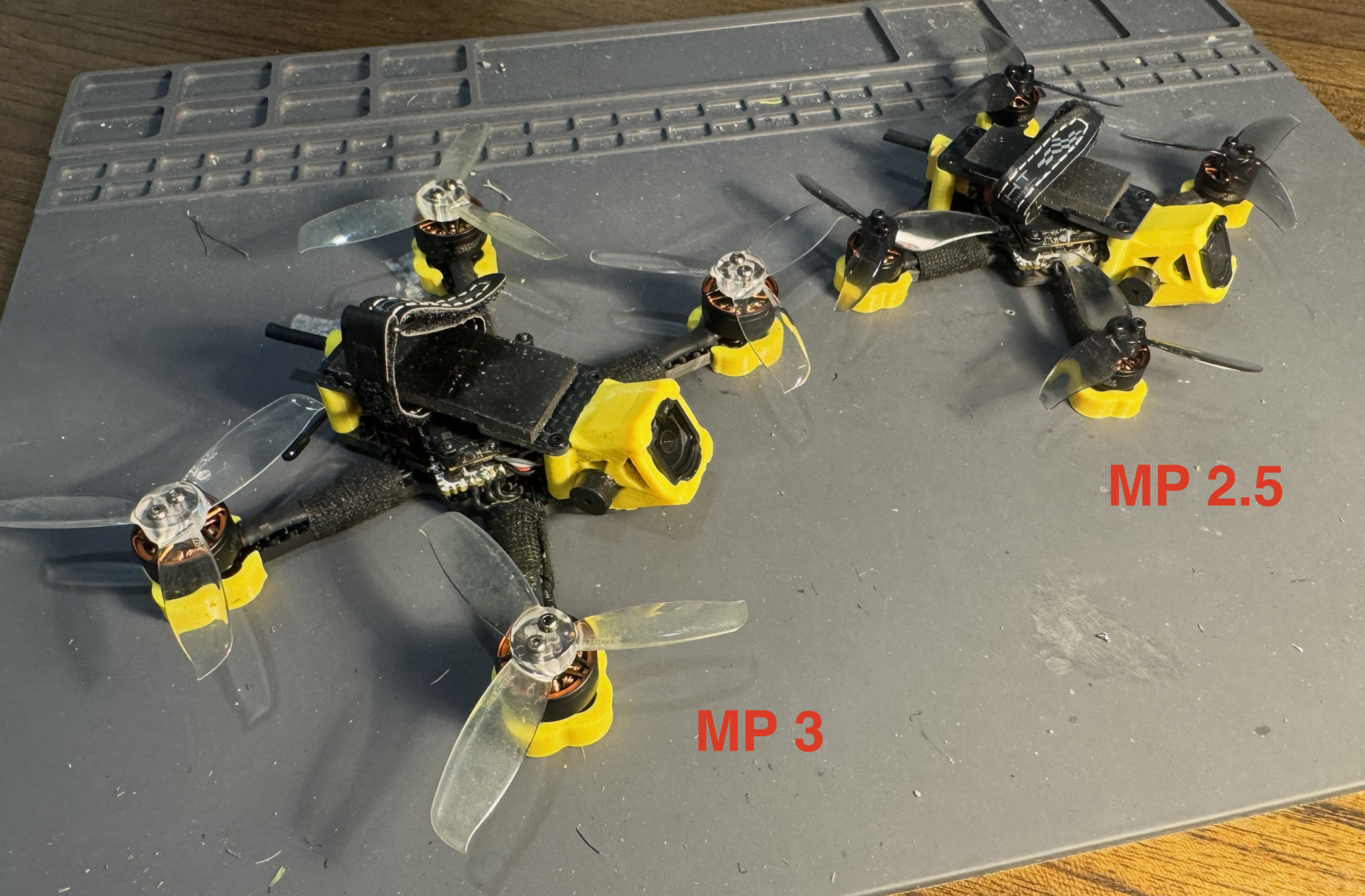

You can also check its smaller 2.5" brother at https://rotorbuilds.com/build/36936. The 2.5 inch version is less powerful.
