NoPro 6 inch LR cruiser

The goal of this build was to focus on the quality footage you can get with the DJI O3 system for a long-range cruiser, while gaining the benefit of much lower weight as compared to a typical GoPro carrying build.

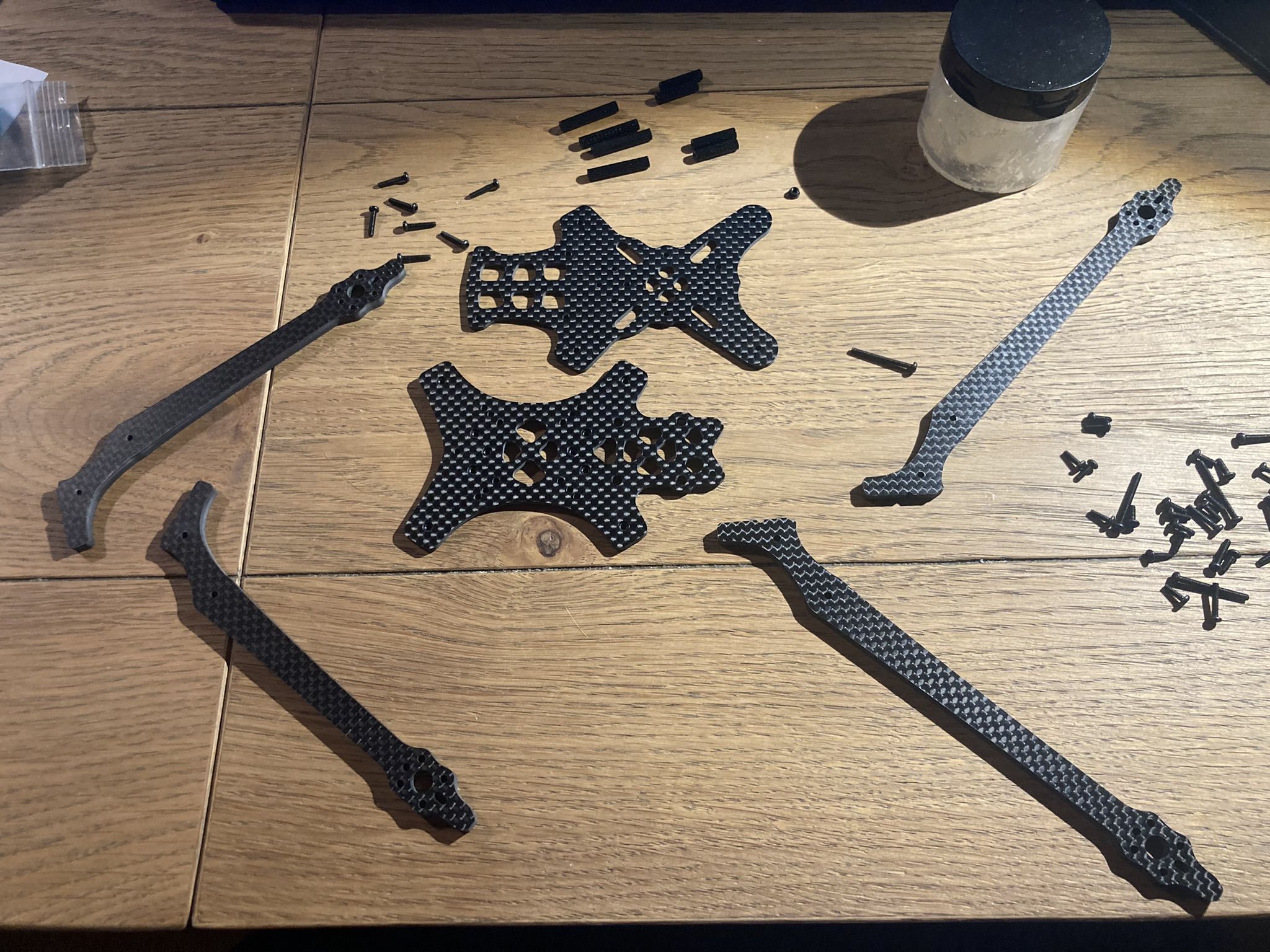

The target for me was to be able to run full size 6 inch props, while keeping weight as low as possible. LeDrone-Club's WU Tank micro freestyle frame seemed great for this with its 12x12 motor mounting and simplicity. For motors, the only real option seemed to be FPVcycle 23mm talls, since they are the largest 12x12 mounting platform motor and should be enough for the 'normal' pitch 6 inch props.

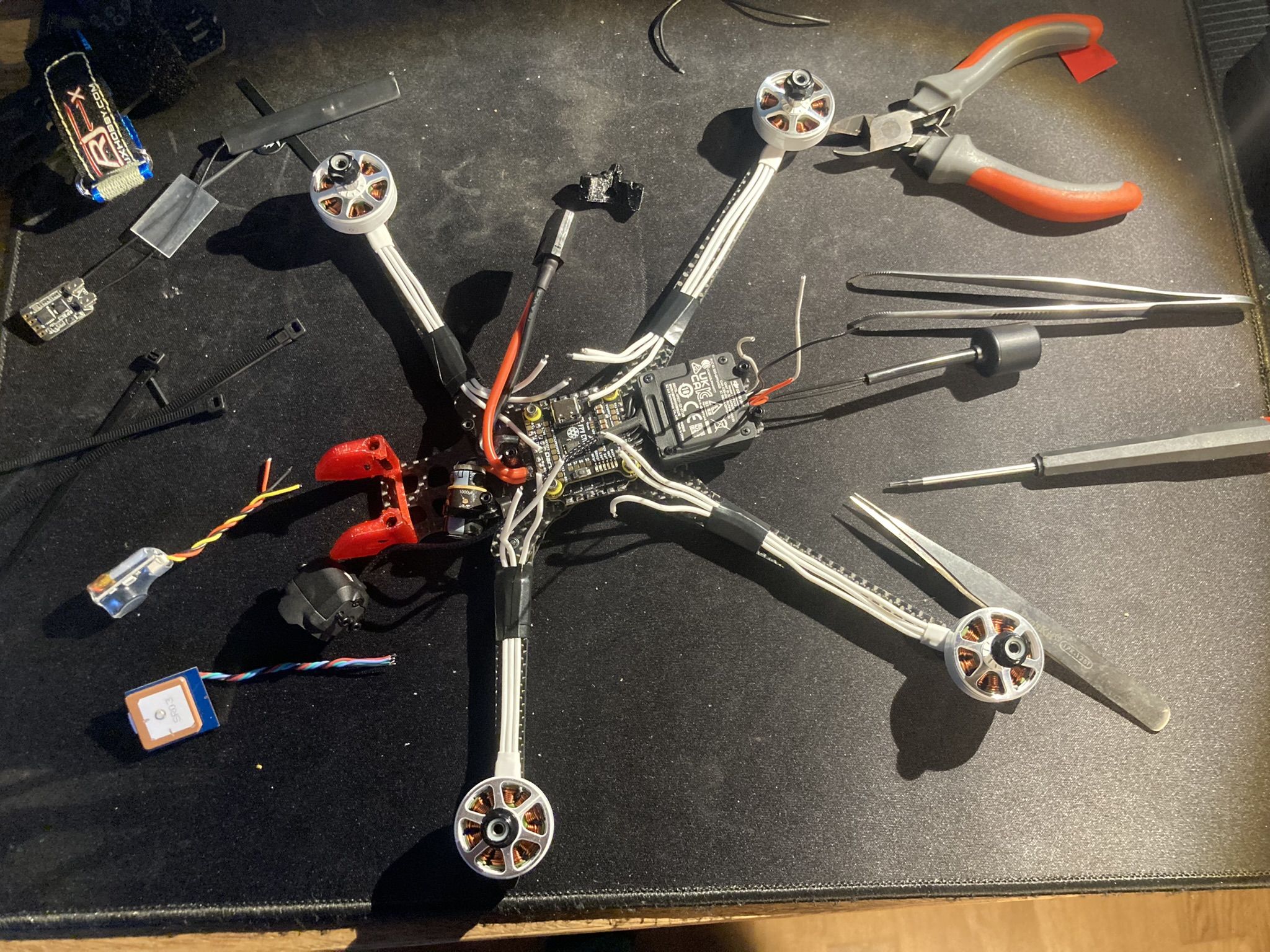

Putting this together was pretty simple, and without the GoPro there is a lot of room for a GPS above the O3 cam. The Cam itself was mounted using some old TPU, I think its from a GEPRC baby croc frame. Props are not in view, and it flies very smooth. It is also blisteringly fast with only 480-540g AUW.

480g AUW with 1300 mah 4s

540g AUW with 2000 mah 4s

Flight time will have to be tested when the weather is better, in the cold, at altitude, with wind etc.. the 1300 4s last only about 4 mins.

Maiden flight in the mountains:
